RXM2AB2JD Schneider Electric Industrial Automation Components
Part#:RXM2AB2JD
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Get a quick Quote!

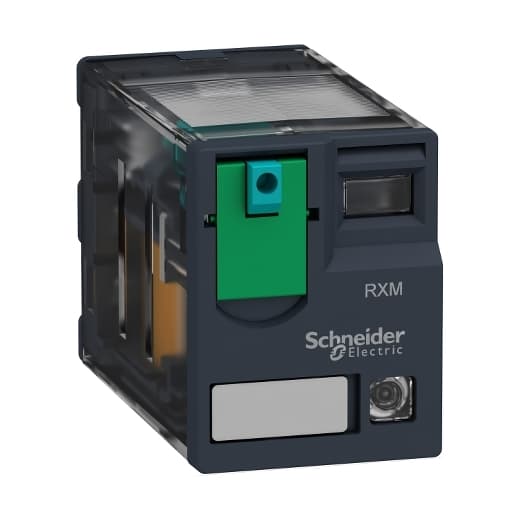

Schneider Electric RXM2AB2JD is a miniature plug-in relay within the RXM sub-range, featuring contacts made from an Ag/Ni - Silver - Nickel alloy. This relay is designed with 2C/O - DPDT (Double Pole Double Throw) contact type, and operates with a control voltage of 12 Vdc. It is rated for a current of 12 A at both 250Vac (AC-1) and 28Vac (DC-1). The RXM2AB2JD is designed for plug-in mounting and can operate within an ambient air temperature range of -40 to +55 °C. It has an IP40 degree of protection and a current consumption of 0.075 A. This model includes a visual position indicator through an LED, consumes 0.9 W of power, and offers electrical durability of 100,000 operations with a resistive load. Its mechanical durability, at no load, is rated at 10,000,000 operations. Additionally, it features a Lockable Test Button (LTB) for latching.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the RXM2AB2JD Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- [Ie] Rated Operational Current 12 A 28 V DC) NO IEC 12 A 250 V AC) NO IEC 6 A 28 V DC) NC IEC 6 A 250 V AC) NC IEC 12 A 28 V DC) UL 12 A 277 V AC) UL
- [Ui] Rated Insulation Voltage 250 V IEC 300 V CSA 300 V UL
- Resistive Rated Load 12 A 250 V AC 12 A 28 V DC
- Operating Rate <= 1200 cycles/hour under load <= 18000 cycles/hour no-load
- Device Presentation Complete product
- Net Weight 0.08 lb(US) (0.037 kg)
- CAD Overall Depth 3.09 in (78.45 mm)
- CAD Overall Height 3.11 in (79 mm)
- Test Levels Level A
- Rated Operational Voltage Limits 9.6...13.2 V DC
- Protection Category RT I
- Safety Reliability Data B10d = 100000
- Operate Time 20 ms
- Drop-Out Voltage Threshold >= 0.1 Uc
- Average Coil Consumption In W 0.9 W
- Mechanical Durability 10000000 cycles
- Maximum Switching Capacity 3000 VA/336 W
- Maximum Switching Voltage 250 V IEC
- Operating Position Any position
- Average Coil Resistance 160 Ohm 20 °C +/- 10 %
- Release Time 20 ms
- Electrical Durability 100000 cycles resistive
- Contacts Material AgNi
- Minimum Switching Capacity 170 mW 10 mA, 17 V
- [Uimp] Rated Impulse Withstand Voltage 4 kV 1.2/50 µs
- Shape Of Pin Flat
- Utilisation Coefficient 20 %
- Status LED With
- [Ithe] Conventional Enclosed Thermal Current 12 A -40…131 °F (-40…55 °C)
- [Uc] Control Circuit Voltage 12 V DC
- Product Or Component Type Plug-in relay
- Control Type Lockable test button
- Series Name Miniature
- Device Short Name RXM
- Contacts Type And Composition 2 C/O
- Range Of Product Harmony Electromechanical Relays
