LRD16 Schneider Electric Industrial Automation Components
Part#:LRD16
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Get a quick Quote!

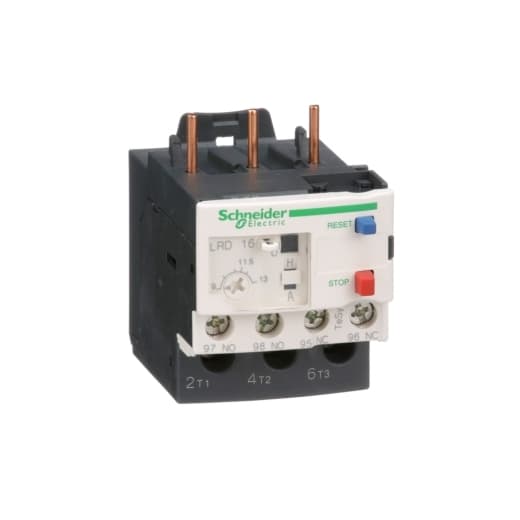

Schneider Electric LRD16, part of the LRD sub-range, is a differential thermal overload relay designed for direct connection to a contactor and features screw-clamp terminals for both upstream and control circuit connections. It is a 3 Pole device with Class 10A protection functions. The LRD16 is rated for currents between 9-13 A and offers thermal overload protection settings within the same range. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts. The rated voltage for phase-to-phase operation is up to 690 V at frequencies from 0 to 400Hz. The minimum operating current is 9 A, and the maximum is 13 A.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LRD16 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Product Compatibility LC1D18 LC1D38 LC1D32 LC1D12 LC1D25
- Connections - Terminals Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 m
- [Ui] Rated Insulation Voltage Power circuit 600 V CSA Power circuit 600 V UL Power circuit 690 V IEC 60947-4-1
- Mounting Support Plate, with specific accessories Rail, with specific accessories Under contactor
- Associated Fuse Rating 4 A gG signalling circuit 4 A BS signalling circuit
- Permissible Current 1.5 A 240 V AC-15 signalling circuit 0.1 A 250 V DC-13 signalling circuit
- Tightening Torque Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals
- Network Type DC AC
- Control Type Red push-button stop Blue push-button reset
- Depth 2.76 in (70 mm)
- Width 1.77 in (45 mm)
- Net Weight 0.27 lb(US) (0.124 kg)
- Height 2.60 in (66 mm)
- Temperature Compensation -4…140 °F (-20…60 °C)
- [Uimp] Rated Impulse Withstand Voltage 6 kV
- Phase Failure Sensitivity Tripping current 130 % of Ir on two phase, the last one at 0
- Auxiliary Contact Composition 1 NO + 1 NC
- Tripping Threshold 1.14 +/- 0.06 Ir IEC 60947-4-1
- Network Frequency 0...400 Hz
- [Ue] Rated Operational Voltage 690 V AC 0...400 Hz power circuit IEC 60947-4-1
- [Ith] Conventional Free Air Thermal Current 5 A signalling circuit
- Range TeSys
- Thermal Protection Adjustment Range 9…13 A
- Product Or Component Type Differential thermal overload relay
- Thermal Overload Class Class 10A IEC 60947-4-1
- Relay Application Motor protection
- Product Name TeSys LRD
- Device Short Name LRD
