SCE-N12FA66LG Saginaw Control Enclosure Fans

SCE-N12FA66LG on Powermatic Associates

Saginaw Control

Part#:SCE-N12FA66LG

Manufacturer:Saginaw Control

Product Lifecycle:Active

Get a quick Quote!

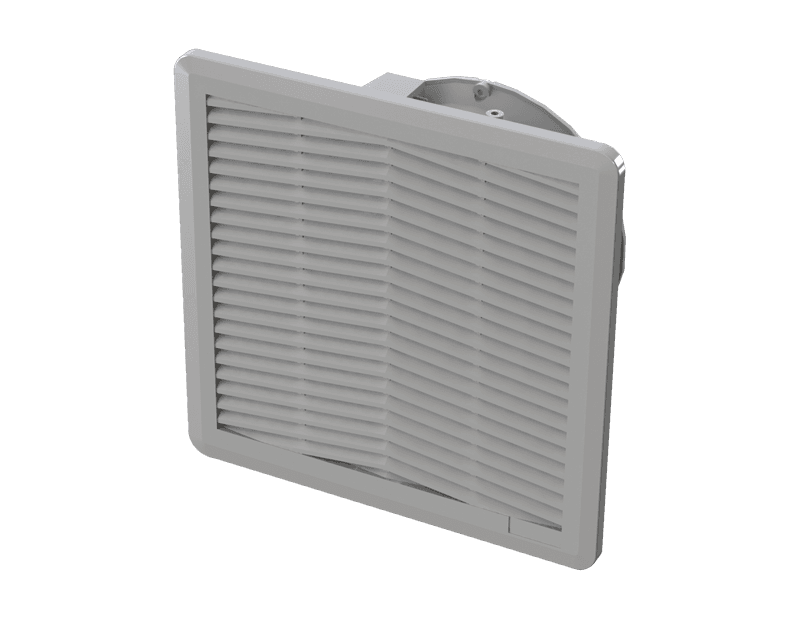

Fan Assembly (115v) Type 12 RAL 7035, Height:9.80", Width:9.80", Depth:4.90",

About the manufacturer: Saginaw Control is one of the manufacturers that offers Enclosure Fans that you can order at Powermatic Associates site. For over five decades, Saginaw Control & Engineering has been a trusted name in the electrical sector, offering a wide range of standard and customized electrical enclosures. Situated in Saginaw, Michigan, our expansive 310,000 square feet manufacturing plant is where our products are expertly crafted.

Check out the SCE-N12FA66LG Saginaw Control price in the box on the right side or send a quick quote.

Product Details

Width
9.80"
Height
9.80"
Industry Standards
UL Component Recognized
Depth
4.90"

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents SCE-N12FA66LG Specs

SCE-N12FA66LG Saginaw - CAD files-1630959517140.zip

Manufacturer warranty
