SCE-60EL4818SS6FSD Saginaw Control Electrical Enclosures

SCE-60EL4818SS6FSD on Powermatic Associates
Saginaw Control

Part#:SCE-60EL4818SS6FSD

Manufacturer:Saginaw Control

Product Lifecycle:Active

Get a quick Quote!

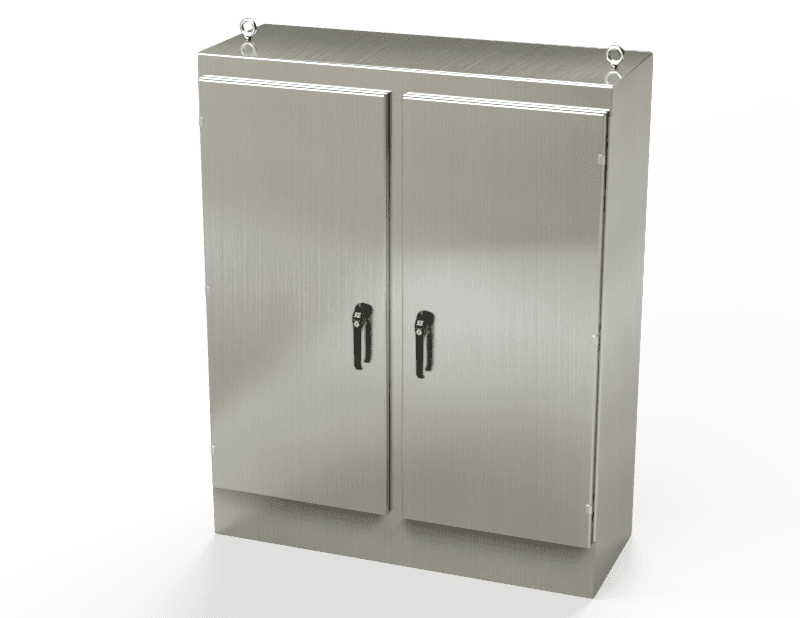

S.S. EL FSD Enclosure, Height:60.00", Width:48.00", Depth:18.00", Type 316 Stainless Steel with #4 Brushed finish. Optional sub-panels powder coated white.

About the manufacturer: Saginaw Control is one of the manufacturers that offers Electrical Enclosures that you can order at Powermatic Associates site. For over five decades, Saginaw Control & Engineering has been a trusted name in the electrical sector, offering a wide range of standard and customized electrical enclosures. Situated in Saginaw, Michigan, our expansive 310,000 square feet manufacturing plant is where our products are expertly crafted.

Check out the SCE-60EL4818SS6FSD Saginaw Control price in the box on the right side or send a quick quote.

Product Details

  • Industry Standards
    NEMA Type 3R, 4, 4X, 12 and Type 13; UL Listed Type 3R, 4, 4X and 12; CSA Type 4, 4X and 12; IEC 60529; IP 66
  • Depth
    18.00"
  • Construction
    0.104 In. Stainless Steel Type 316/316L. Removable and inchangeable doors. Concealed hinges. Seams continuously welded and ground smooth. Strong rigid construction with stiffeners welded on backs of single access boxes. Lifting eyes for easy handling. Bla
  • Finish
    Type 316 Stainless Steel with #4 Brushed finish. Optional sub-panels powder coated white.
  • Width
    48.00"
  • Height
    60.00"

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents SCE-60EL4818SS6FSD Specs

SCE-60EL4818SS6FSD Saginaw - CAD files-1630957403175.zip
