8600204 SAB Servo Motor Cables
Part#:8600204
Manufacturer:SAB
Category:Servo Motor Cables
Product Lifecycle:Active
Get a quick Quote!

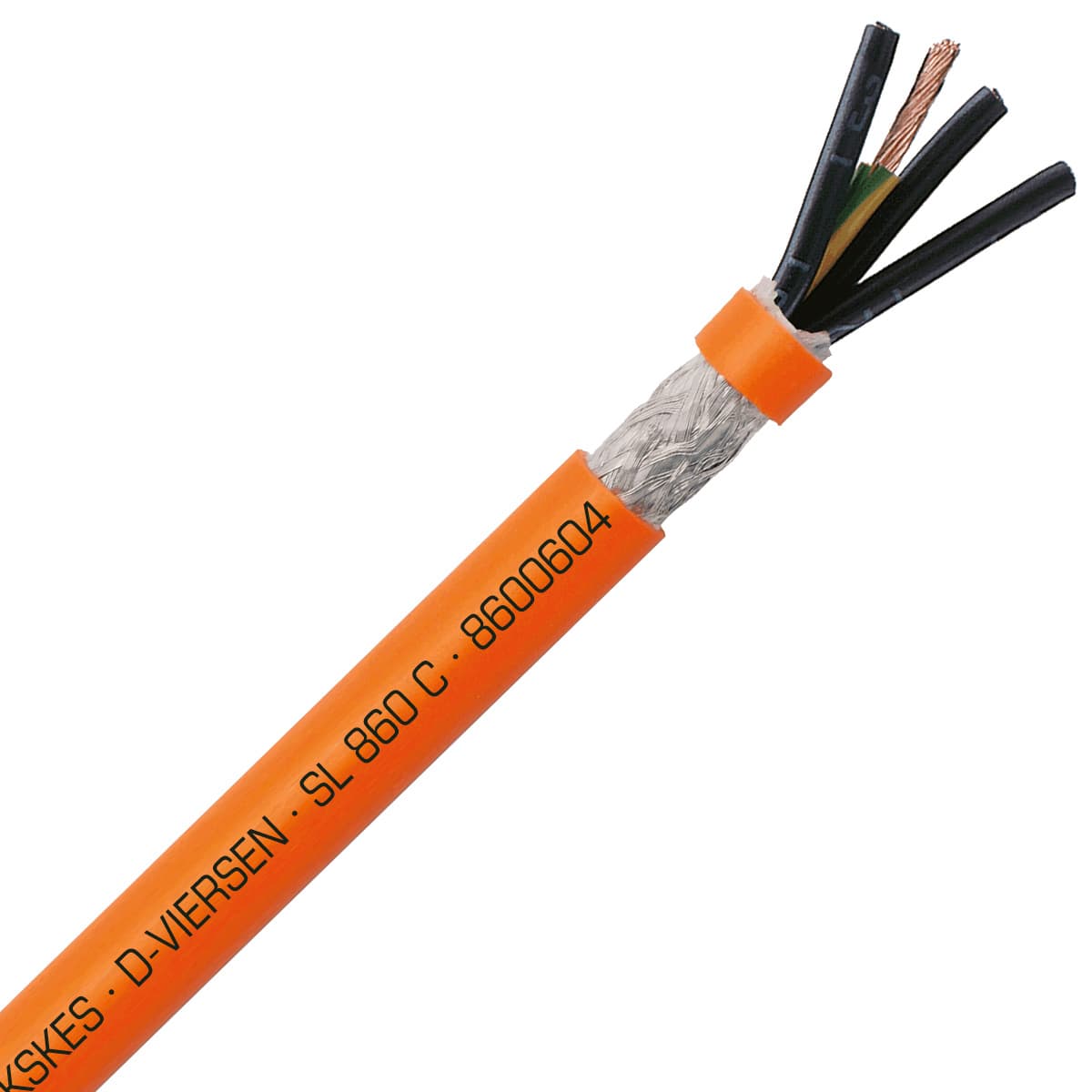

SL 860 C - 2 AWG/4c, shielded low capacitance flexible servo motor feedback cable, UL, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers Servo Motor Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 8600204 SAB price in the box on the right side or send a quick quote.
Product Details
- Color Orange
- Weight 536.60 g
- Chemical Resistant NO
- Oil Resistant Yes
- UV Resistant NO
- Halogen Free NO
- Submersible NO
- Direct Burial NO
- Movement Type Stationary/Flexible
- Application Power, Motor & Drives
- Gauge 2 AWG
- Number of conductors 4
- Cable configuration 2 AWG (≈ 272/26)/4c
- Stranding type bare copper strands, class 5
- Insulation type Special Polymer
- Shielded Yes
- Voltage 1000
- Approvals UR AWM, CE, EAC, RoHS
- RoHS YES
- Temperature range -30°C to +80°C
- Outside diameter (OD) 1.154 in
- UOM ft
- CSA Certification NO
- UL Certification YES
- CE Certification YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
8600204 Description
SAB 8600204 Servo Motor Cable is part of SL 860 C product family, and is designed for Power, Motor & Drives applications. This cable is 2 AWG with 4 conductors, and shielded 2 AWG (≈ 272/26)/4c cable configuration. Featuring Orange color jacket, Special Polymer insulation, and bare copper strands, class 5 stranding. It has 1.154 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Power, Motor & Drives cable can operate in -30°C to +80°C temperature range, it is oil resistant, and has following approvals: UR AWM, CE, EAC, RoHS. This cable is an excellent choice for Power, Motor & Drives applications.
Related documents 8600204 Specs
