8330204 SAB Servo Motor Cables

Name: 8330204
Brand: SAB

Part#:8330204

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

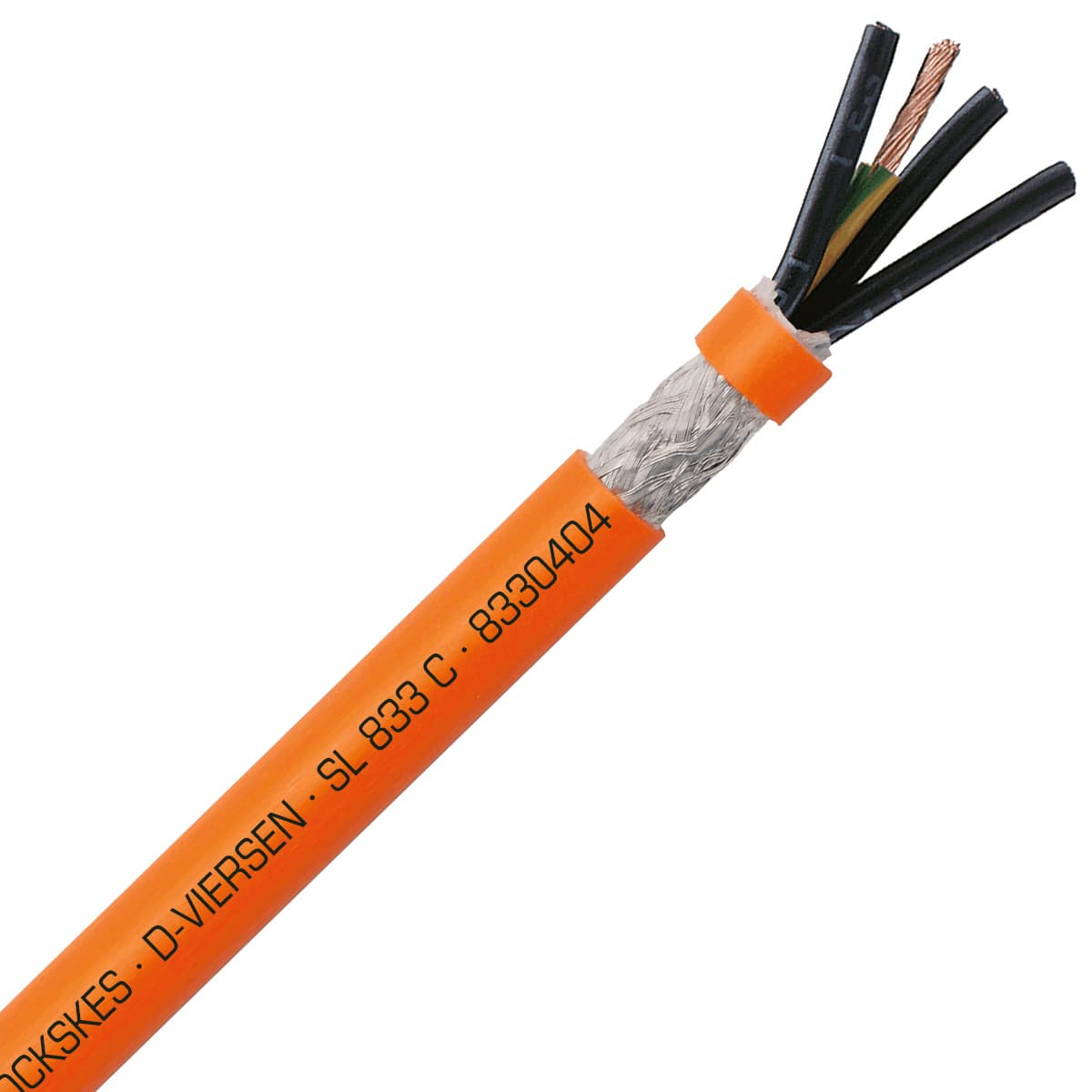

SL 833 C - 2 AWG/4c, shielded oil resistant continuous flex servo motor power cable, UL, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Servo Motor Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 8330204 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Orange
Weight
527.98 g
Chemical Resistant
YES
Oil Resistant
Yes
UV Resistant
NO
Halogen Free
NO
Submersible
NO
Direct Burial
NO
Movement Type
Stationary/Flexible
Application
Power, Motor & Drives
Gauge
2 AWG
Number of conductors
4
Cable configuration
2 AWG (≈ 1083/32)/4c
Stranding type
bare copper strands, class 6
Insulation type
TPE
Shielded
Yes
Voltage
1000
Approvals
UR AWM, CSA AWM, CE, EAC, RoHS
RoHS
YES
Temperature range
-50°C to +80°C

Outside diameter (OD)

1.150 in

UOM

CSA Certification

YES

UL Certification

YES

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8330204 Description

SAB 8330204 Servo Motor Cable is part of SL 833 C product family, and is designed for Power, Motor & Drives applications. This cable is 2 AWG with 4 conductors, and shielded 2 AWG (≈ 1083/32)/4c cable configuration. Featuring Orange color jacket, TPE insulation, and bare copper strands, class 6 stranding. It has 1.15 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Power, Motor & Drives cable can operate in -50°C to +80°C temperature range, it is chemical resistant, oil resistant, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Power, Motor & Drives applications.
