7761604 SAB Multiconductor Cables

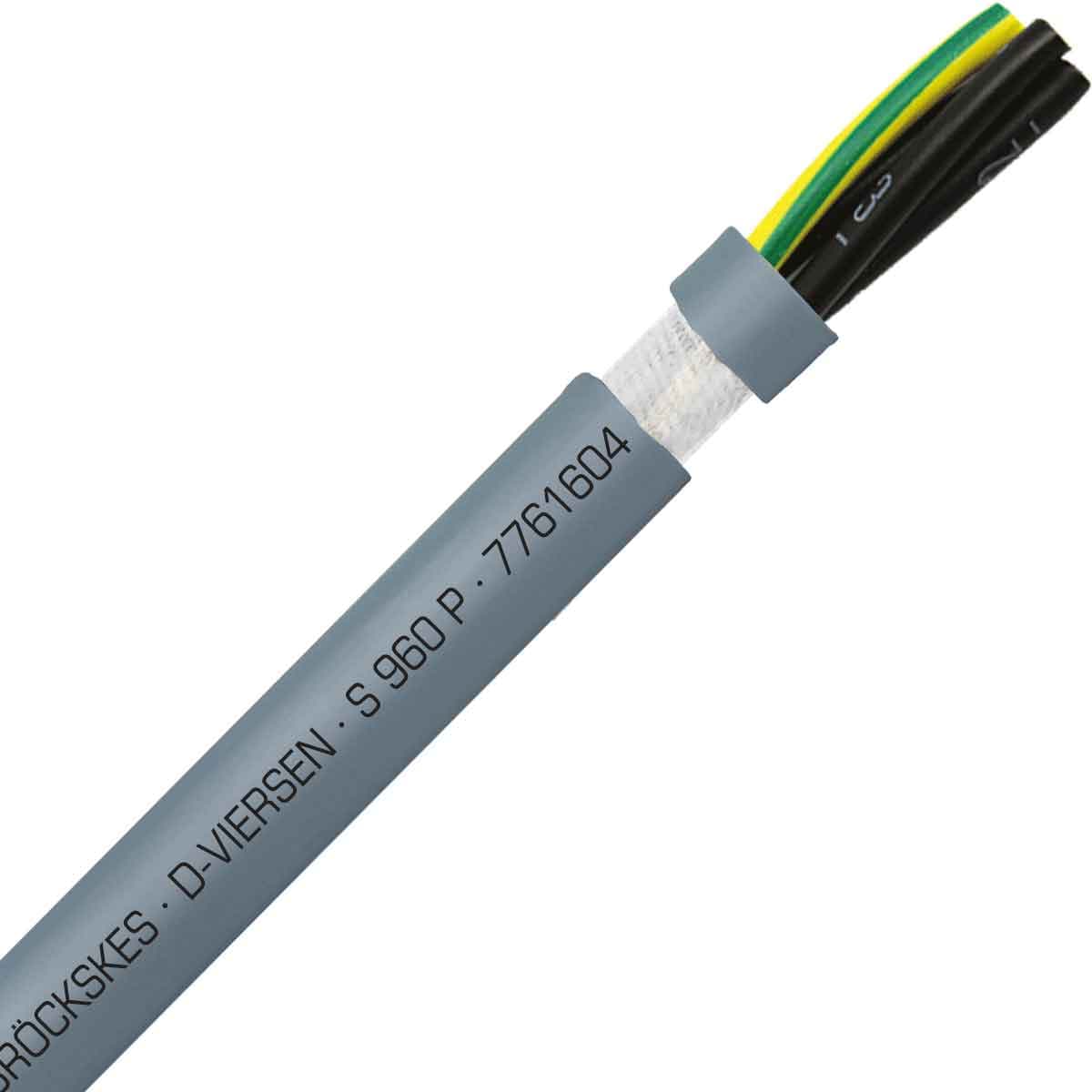

SAB 7761604 S 960 P - 16 AWG/4c, tear & oil resistant continuous flex PUR control cable, UL, CSA, CE, RoHS
SAB

Part#:7761604

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

S 960 P - 16 AWG/4c, tear & oil resistant continuous flex PUR control cable, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Multiconductor Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 7761604 SAB price in the box on the right side or send a quick quote.

Product Details

  • Color
    Gray
  • Weight
    33.11 g
  • Chemical Resistant
    YES
  • Oil Resistant
    Yes
  • UV Resistant
    NO
  • Halogen Free
    NO
  • Submersible
    NO
  • Direct Burial
    NO
  • Movement Type
    Continuous Flex
  • Application
    Control
  • Gauge
    16 AWG
  • Number of conductors
    4
  • Cable configuration
    16 AWG (≈ 84/34)/4c
  • Stranding type
    bare copper strands, class 6
  • Insulation type
    PVC
  • Shielded
    No
  • Voltage
    600
  • Approvals
    UR AWM, CSA AWM, CE, EAC, RoHS
  • RoHS
    YES
  • Temperature range
    -40°C to +80°C
  • Outside diameter (OD)
    0.339 in
  • UOM
    ft
  • CSA Certification
    YES
  • UL Certification
    YES
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

7761604 Description

SAB 7761604 Continuous Flex Cable is part of S 960 P product family, and is designed for Control applications. This cable is 16 AWG with 4 conductors, and 16 AWG (≈ 84/34)/4c cable configuration. Featuring Gray color jacket, PVC insulation, and bare copper strands, class 6 stranding. It has 0.339 in OD, constructed to support Continuous Flex movement type, and rated for 600 volts. This Control cable can operate in -40°C to +80°C temperature range, it is chemical resistant, oil resistant, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control applications.

Related documents 7761604 Specs

7761604 S_960_P.pdf
