3842803 SAB Data and Sensor Cables

Name: 3842803
Brand: SAB

Part#:3842803

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

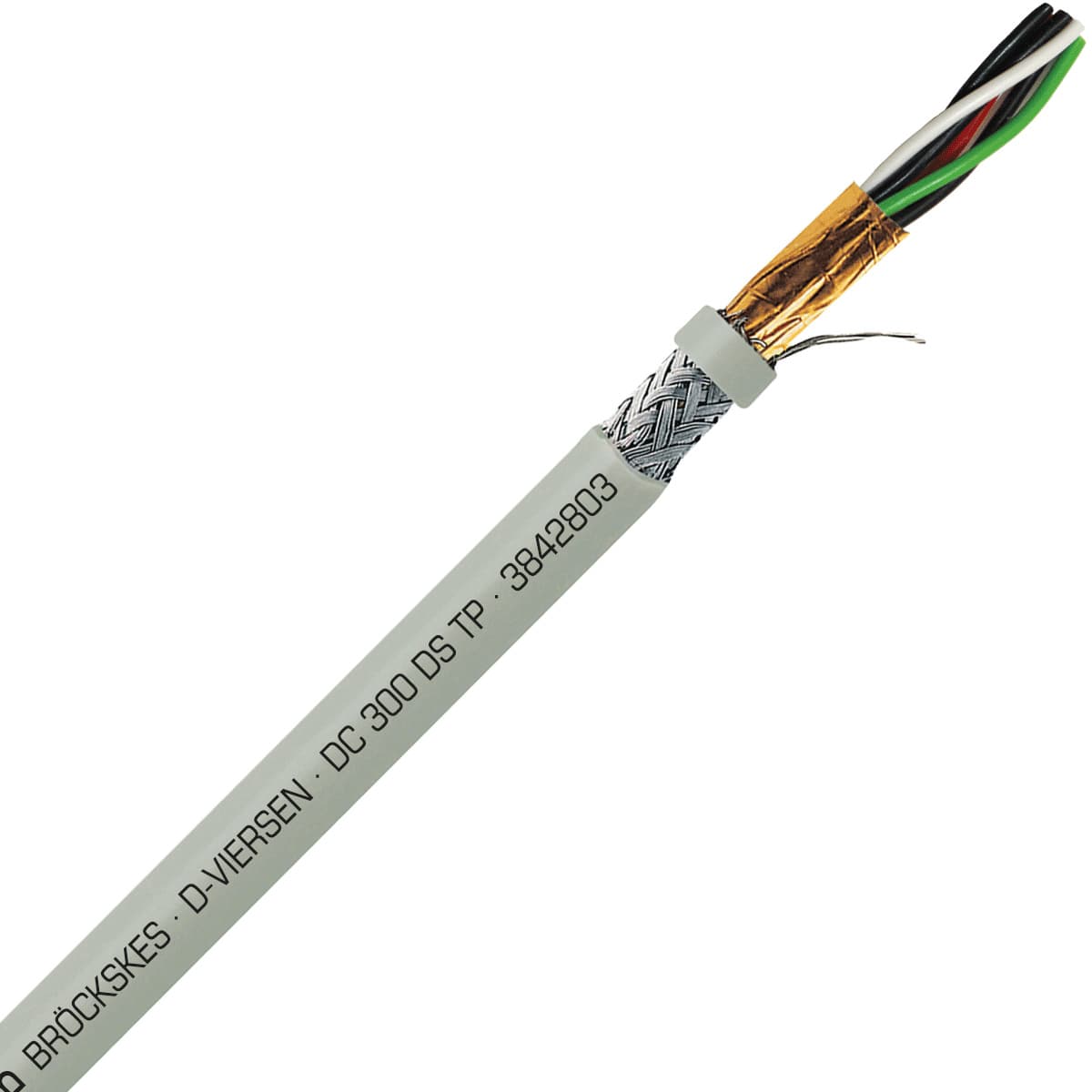

DC 300 DS TP- 28 AWG/3pr, multi-paired double shielded PVC signal and control cable, AWM

About the manufacturer: SAB is one of the manufacturers that offers Data and Sensor Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 3842803 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Grayish Tan
Weight
10.43 g
Chemical Resistant
NO
Oil Resistant
Yes
UV Resistant
NO
Halogen Free
NO
Submersible
NO
Direct Burial
NO
Movement Type
Stationary/Flexible
Application
Power
Gauge
28 AWG
Pair count
3
Number of conductors
6
Cable configuration
28 AWG (7-strand)/3pr
Stranding type
tinned copper, 7 strands
Insulation type
Semi-rigid PVC
Shielded
Yes
Voltage
300
Approvals
UR AWM, CSA AWM, CE, EAC, RoHS
RoHS
YES

Temperature range

-30°C to +80°C

Outside diameter (OD)

0.217 in

UOM

CSA Certification

YES

UL Certification

YES

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3842803 Description

SAB 3842803 Data and Sensor Cable is part of DC 300 DS TP product family, and is designed for Power applications. This cable is 28 AWG with 6 conductors, and shielded 28 AWG (7-strand)/3pr cable configuration. Featuring Grayish Tan color jacket, Semi-rigid PVC insulation, and tinned copper, 7 strands stranding. It has 0.217 in OD, constructed to support Stationary/Flexible movement type, and rated for 300 volts. This Power cable can operate in -30°C to +80°C temperature range, it is oil resistant, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Power applications.
