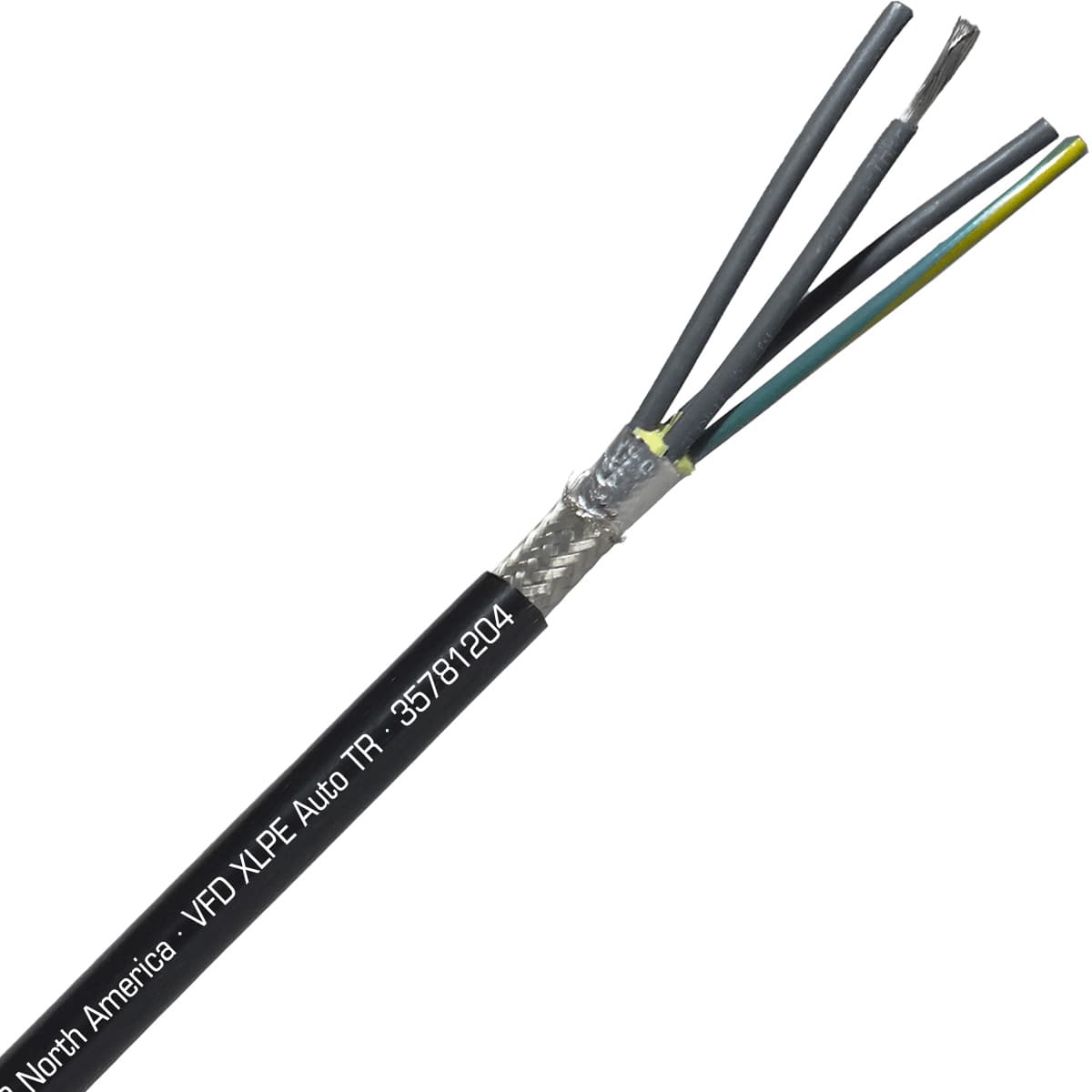

35781404 SAB VFD Cables
Part#:35781404
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!
VFD XLPE AUTO TR - 14 AWG/4c, continuous flex VFD cable with foil and braid shield, UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers VFD Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 35781404 SAB price in the box on the right side or send a quick quote.
Product Details
- Color Black
- Weight 74.39 g
- Chemical Resistant NO
- Oil Resistant Yes
- UV Resistant YES
- Halogen Free NO
- Submersible NO
- Direct Burial YES
- Movement Type Stationary/Flexible
- Application Motor & Drives
- Gauge 14 AWG
- Number of conductors 4
- Cable configuration 14 AWG/4c
- Stranding type tinned copper strands, class M
- Insulation type XLPE
- Shielded Yes
- Voltage 1000
- Approvals UL TC-ER, UL WTTC, c(UL) CIC-TC, CSA AWM, CE, RoHS
- RoHS YES
- Temperature range -40°C to +105°C
- Outside diameter (OD) 0.569 in
- UOM ft
- CSA Certification YES
- UL Certification YES
- CE Certification YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
35781404 Description
SAB 35781404 VFD Cable is part of VFD XLPE Auto TR product family, and is designed for Motor & Drives applications. This cable is 14 AWG with 4 conductors, and shielded 14 AWG/4c cable configuration. Featuring Black color jacket, XLPE insulation, and tinned copper strands, class M stranding. It has 0.569 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Motor & Drives cable can operate in -40°C to +105°C temperature range, it is oil resistant, UV resistand, rated for direct burial, and has following approvals: UL TC-ER, UL WTTC, c(UL) CIC-TC, CSA AWM, CE, RoHS. This cable is an excellent choice for Motor & Drives applications.
Related documents 35781404 Specs
