3452434 SAB Data and Sensor Cables

3452434 on Powermatic Associates
SAB

Part#:3452434

Manufacturer:SAB

Category:Data and Sensor Cables

Product Lifecycle:Active

Product description

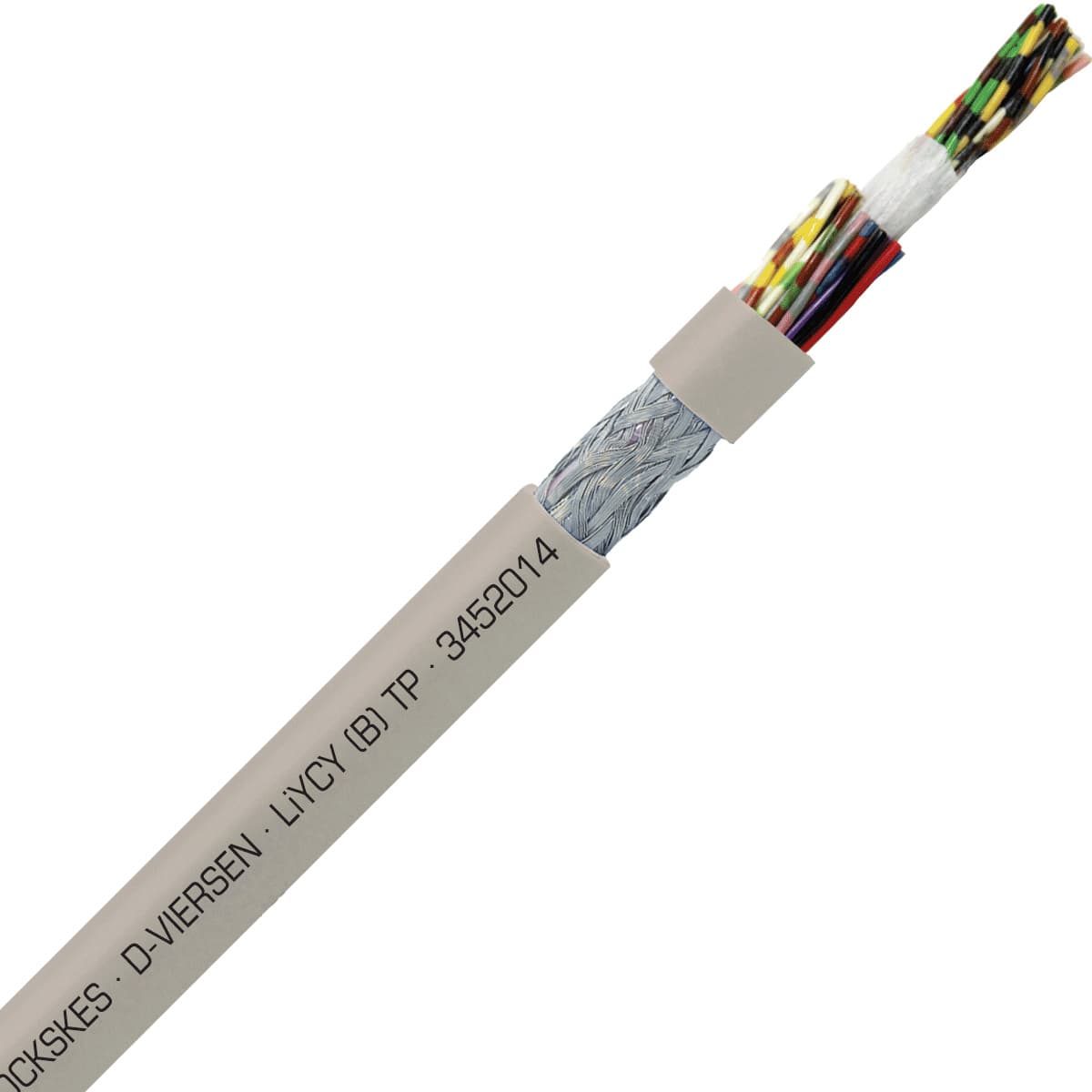

LiYCY (B) TP - 22 AWG/24pr, shielded multi-paired signal and control PVC cable with DIN color code

Product Details

  • Color
    Grayish Tan
  • Weight
    126.55 g
  • Chemical Resistant
    YES
  • Oil Resistant
    Yes
  • UV Resistant
    NO
  • Halogen Free
    NO
  • Submersible
    NO
  • Direct Burial
    NO
  • Movement Type
    Stationary/Flexible
  • Application
    Power
  • Gauge
    22 AWG
  • Pair count
    24
  • Number of conductors
    48
  • Cable configuration
    22 AWG (≈ 7/30)/24pr
  • Stranding type
    bare copper, fine strands
  • Insulation type
    PVC
  • Shielded
    Yes
  • Voltage
    300
  • Approvals
    CE, EAC, RoHS
  • RoHS
    YES
  • Temperature range
    -30°C to +70°C
  • Outside diameter (OD)
    0.693 in
  • UOM
    ft
  • CSA Certification
    NO
  • UL Certification
    NO
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

SAB 3452434 Data and Sensor Cable is part of LiYCY (B) TP product family, and is designed for Power applications. This cable is 22 AWG with 48 conductors, and shielded 22 AWG (≈ 7/30)/24pr cable configuration. Featuring Grayish Tan color jacket, PVC insulation, and bare copper, fine strands stranding. It has 0.693 in OD, constructed to support Stationary/Flexible movement type, and rated for 300 volts. This Power cable can operate in -30°C to +70°C temperature range, it is chemical resistant, oil resistant, and has following approvals: CE, EAC, RoHS. This cable is an excellent choice for Power applications.

3452434 Related Documents

LiYCY_B_TP.pdf
