31870182 SAB Hook-Up Wire

Name: 31870182
Brand: SAB

Part#:31870182

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

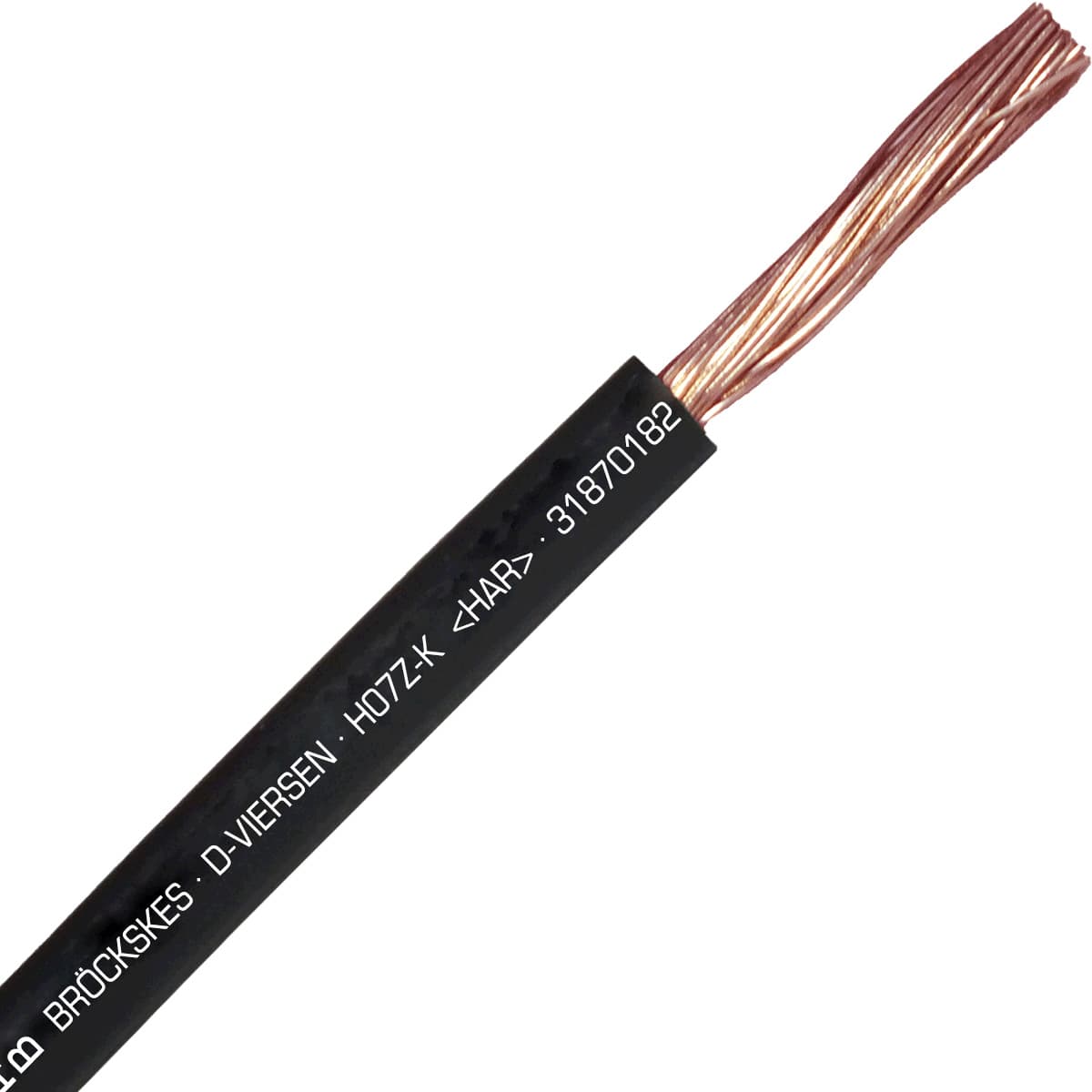

H07Z-K (HAR/CE) - 16 AWG halogen-free hook-up wire, Black

About the manufacturer: SAB is one of the manufacturers that offers Hook-Up Wire that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 31870182 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Black
Weight
5.90 g
Chemical Resistant
NO
Oil Resistant
No
UV Resistant
NO
Halogen Free
YES
Submersible
NO
Direct Burial
NO
Movement Type
Stationary/Flexible
Application
Control, Power
Gauge
16 AWG
Number of conductors
1
Cable configuration
16 AWG/1c
Stranding type
bare copper strands, class 5
Shielded
No
Voltage
750
Approvals
, CE, RoHS
RoHS
YES
Temperature range
-40°C to +90°C
Outside diameter (OD)
0.138 in

UOM

CSA Certification

UL Certification

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

31870182 Description

SAB 31870182 European Standardized Cable is part of H07Z-K- HAR product family, and is designed for Control, Power applications. This cable is 16 AWG with 1 conductors, and 16 AWG/1c cable configuration. Featuring Black color jacket, and bare copper strands, class 5 stranding. It has 0.138 in OD, constructed to support Stationary/Flexible movement type, and rated for 750 volts. This Control, Power cable can operate in -40°C to +90°C temperature range, it is Halogen free, and has following approvals: <HAR>, CE, RoHS. This cable is an excellent choice for Control, Power applications.
