31850425 SAB High Temperature Cables
Part#:31850425
Manufacturer:SAB
Category:High Temperature Cables
Product Lifecycle:Active
Product description

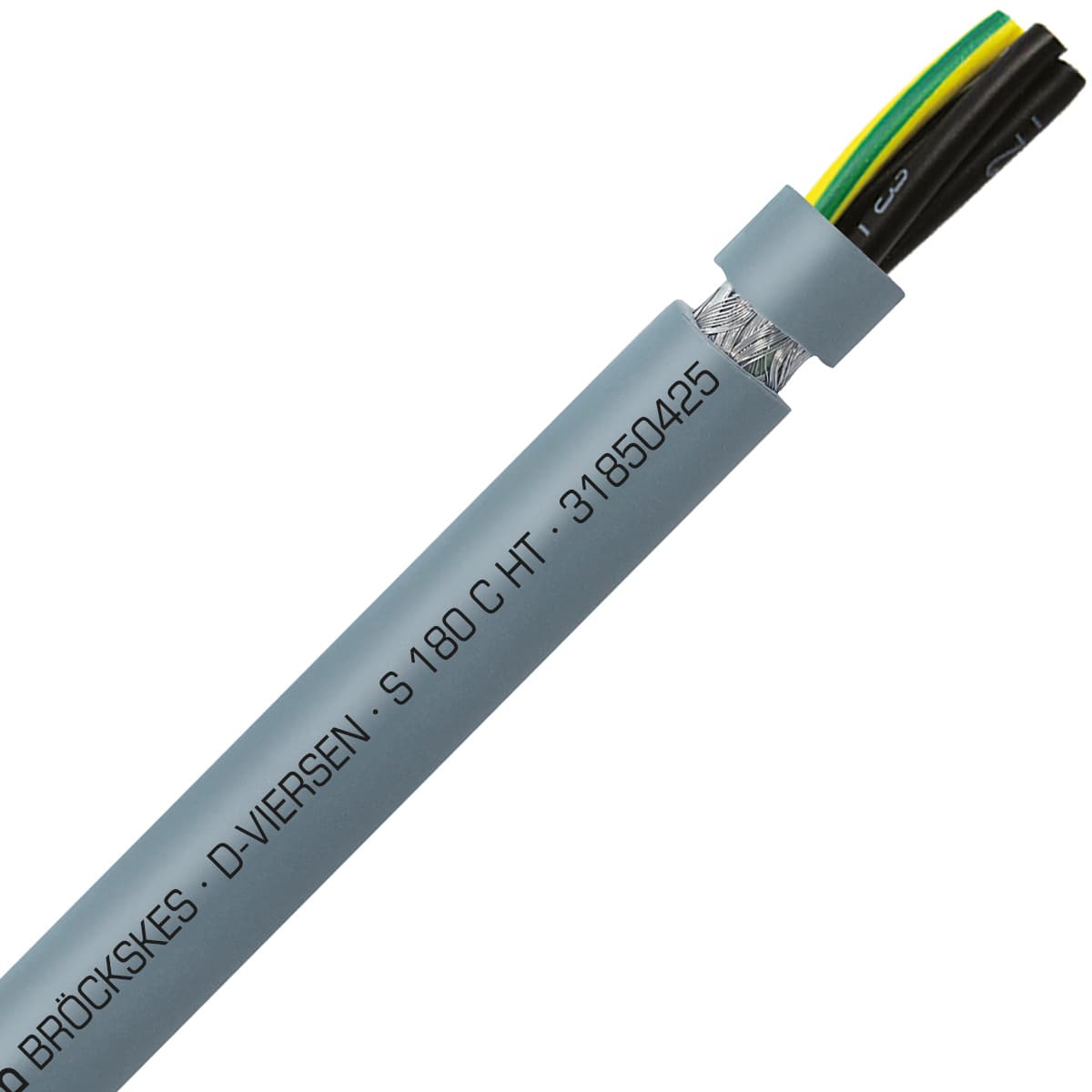

S 180 C HT - 14 AWG/4c, high temperature silicone continuous flex shielded control, CE, RoHS
Product Details
- Color Gray
- Weight 67.13 g
- Chemical Resistant NO
- Oil Resistant No
- UV Resistant NO
- Halogen Free NO
- Submersible NO
- Direct Burial NO
- Movement Type Continuous Flex
- Application Control, Power
- Gauge 14 AWG
- Number of conductors 4
- Cable configuration 14 AWG (≈ 140/34)/4c
- Stranding type tinned copper strands, class 6
- Insulation type FEP
- Shielded Yes
- Voltage 1000
- Approvals CE, EAC, RoHS
- RoHS YES
- Temperature range -25°C to +180°C; +200°C (short-term use)
- Outside diameter (OD) 0.437 in
- UOM ft
- CSA Certification NO
- UL Certification NO
- CE Certification YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product
SAB 31850425 High Temperature Cable is part of S 180 C HT product family, and is designed for Control, Power applications. This cable is 14 AWG with 4 conductors, and shielded 14 AWG (≈ 140/34)/4c cable configuration. Featuring Gray color jacket, FEP insulation, and tinned copper strands, class 6 stranding. It has 0.437 in OD, constructed to support Continuous Flex movement type, and rated for 1000 volts. This Control, Power cable can operate in -25°C to +180°C; +200°C (short-term use) temperature range, it is and has following approvals: CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
