3150580 SAB Data and Sensor Cables
Part#:3150580
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

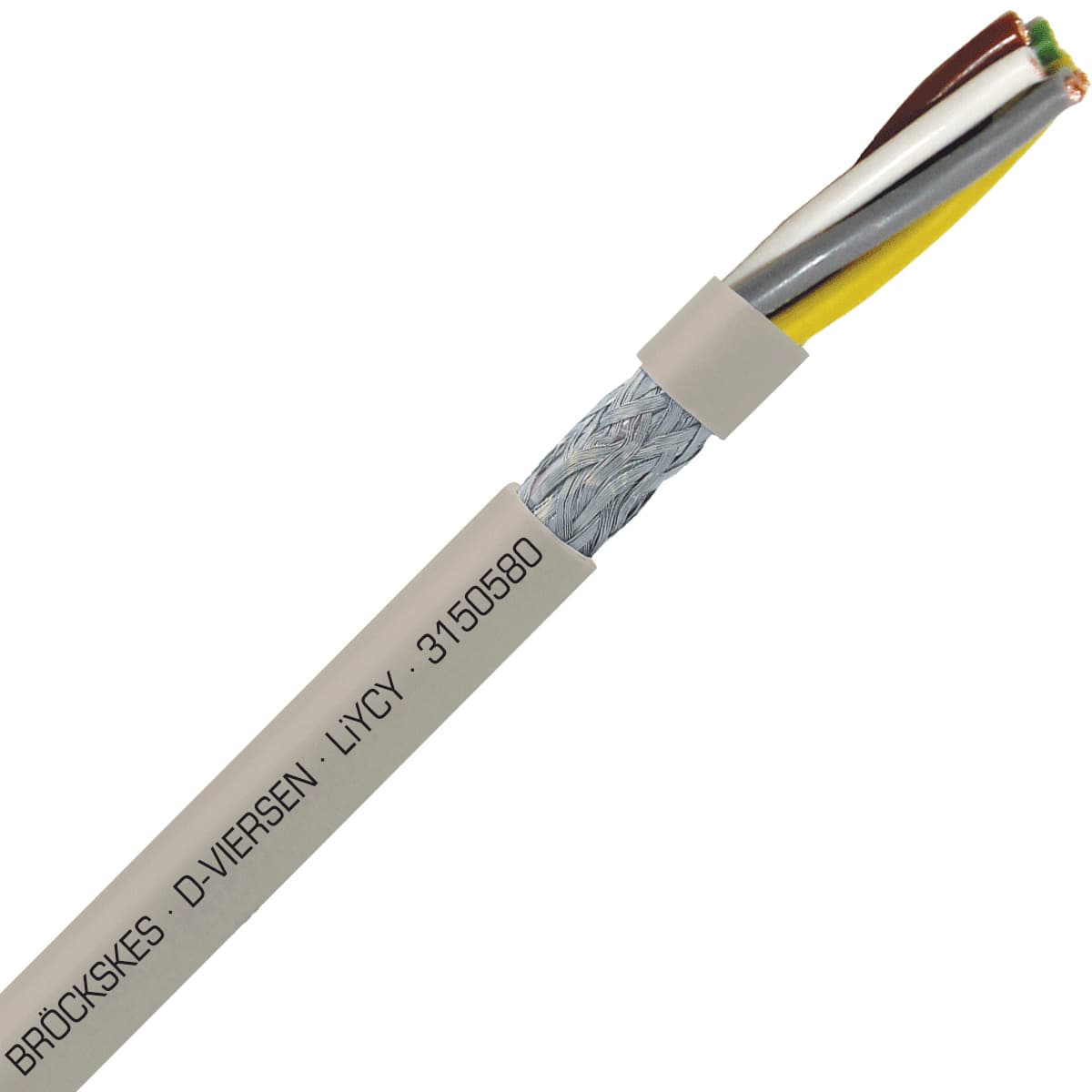

LiYCY - 18 AWG/5c, shielded multi-conductor signal and control PVC cable with DIN color code
About the manufacturer: SAB is one of the manufacturers that offers Data and Sensor Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 3150580 SAB price in the box on the right side or send a quick quote.
Product Details
- UV Resistant NO
- Direct Burial NO
- Color Grayish Tan
- Temperature range -30°C to +70°C
- UL Certification NO
- Oil Resistant Yes
- Application Power
- Insulation type PVC
- Outside diameter (OD) 0.291 in
- Halogen Free NO
- Gauge 18 AWG
- Stranding type bare copper, fine strands
- Approvals CE, EAC, RoHS
- Weight 29.48 g
- Submersible NO
- UOM ft
- Chemical Resistant YES
- Movement Type Stationary/Flexible
- Number of conductors 5
- RoHS YES
- CSA Certification NO
- Voltage 300
- Cable configuration 18 AWG (≈ 30/32)/5c
- CE Certification YES
- Shielded Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
3150580 Description
SAB 3150580 Data and Sensor Cable is part of LiYCY product family, and is designed for Power applications. This cable is 18 AWG with 5 conductors, and shielded 18 AWG (≈ 30/32)/5c cable configuration. Featuring Grayish Tan color jacket, PVC insulation, and bare copper, fine strands stranding. It has 0.291 in OD, constructed to support Stationary/Flexible movement type, and rated for 300 volts. This Power cable can operate in -30°C to +70°C temperature range, it is chemical resistant, oil resistant, and has following approvals: CE, EAC, RoHS. This cable is an excellent choice for Power applications.
Related documents 3150580 Specs
