3053234 SAB Data and Sensor Cables

3053234 on Powermatic Associates
SAB

Part#:3053234

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

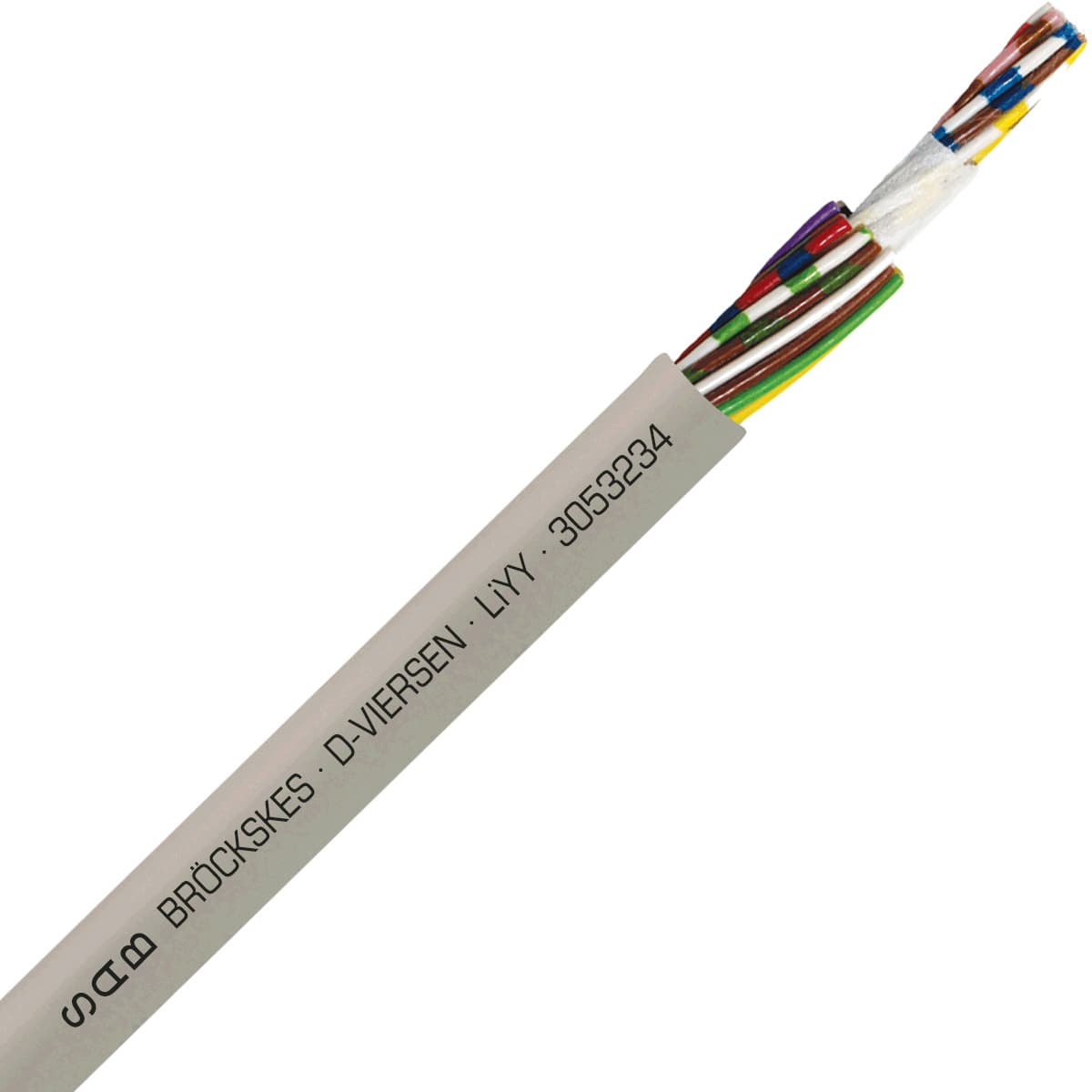

LiYY - 22 AWG/32, multi-conductor signal and control PVC cable with DIN color code

About the manufacturer: SAB is one of the manufacturers that offers Data and Sensor Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 3053234 SAB price in the box on the right side or send a quick quote.

Product Details

  • Color
    Grayish Tan
  • Weight
    63.96 g
  • Chemical Resistant
    YES
  • Oil Resistant
    Yes
  • UV Resistant
    NO
  • Halogen Free
    NO
  • Submersible
    NO
  • Direct Burial
    NO
  • Movement Type
    Stationary/Flexible
  • Application
    Power
  • Gauge
    22 AWG
  • Number of conductors
    32
  • Cable configuration
    22 AWG (≈ 7/30)/32c
  • Stranding type
    bare copper, fine strands
  • Insulation type
    PVC
  • Shielded
    No
  • Voltage
    300
  • Approvals
    CE, EAC, RoHS
  • RoHS
    YES
  • Temperature range
    -30°C to +70°C
  • Outside diameter (OD)
    0.457 in
  • UOM
    ft
  • CSA Certification
    NO
  • UL Certification
    NO
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3053234 Description

SAB 3053234 Data and Sensor Cable is part of LiYY product family, and is designed for Power applications. This cable is 22 AWG with 32 conductors, and 22 AWG (≈ 7/30)/32c cable configuration. Featuring Grayish Tan color jacket, PVC insulation, and bare copper, fine strands stranding. It has 0.457 in OD, constructed to support Stationary/Flexible movement type, and rated for 300 volts. This Power cable can operate in -30°C to +70°C temperature range, it is chemical resistant, oil resistant, and has following approvals: CE, EAC, RoHS. This cable is an excellent choice for Power applications.

Related documents 3053234 Specs

3053234 LiYY.pdf
