3050580 SAB Data and Sensor Cables

Name: 3050580
Brand: SAB

Part#:3050580

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

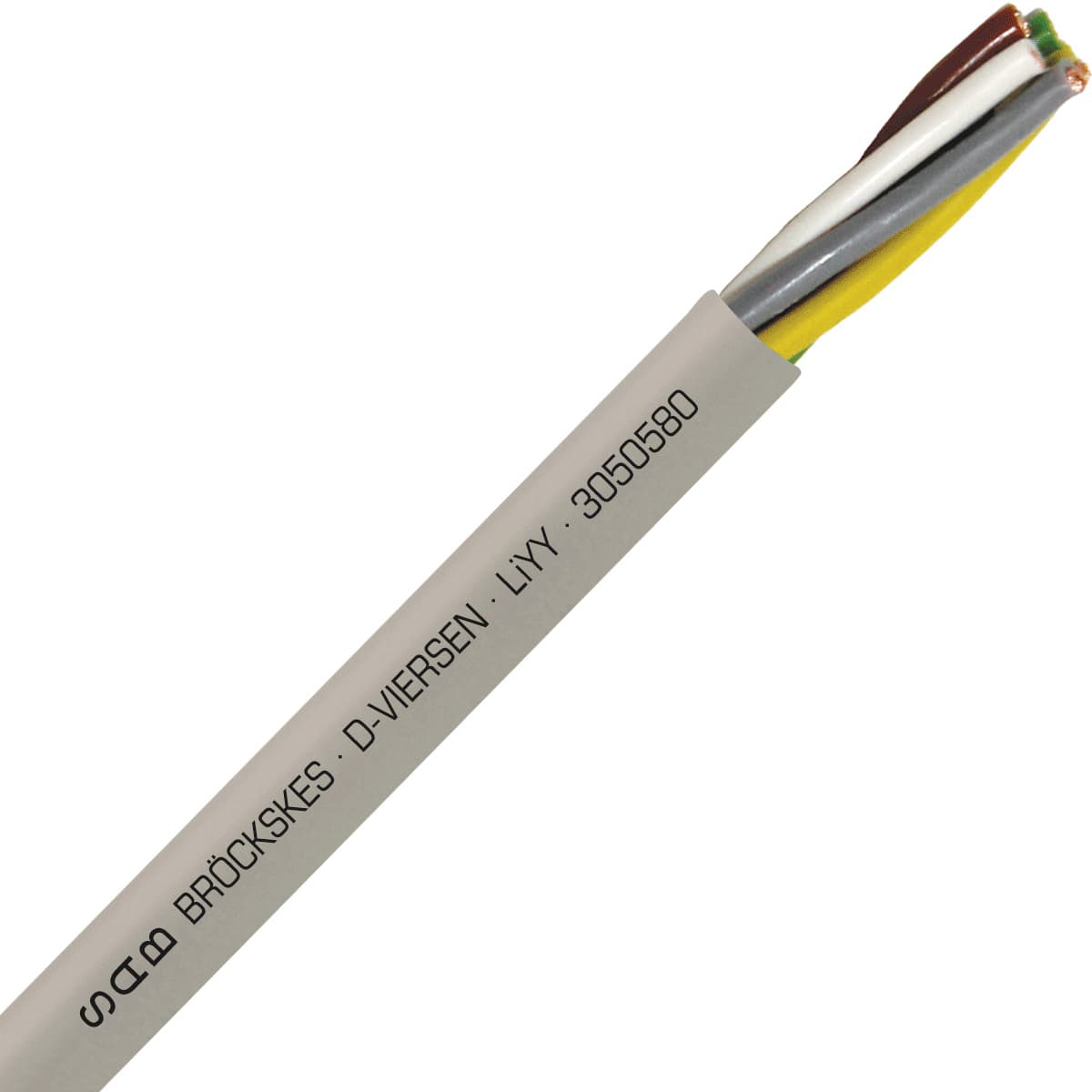

LiYY - 18 AWG/5c, multi-conductor signal and control PVC cable with DIN color code

About the manufacturer: SAB is one of the manufacturers that offers Data and Sensor Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 3050580 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Grayish Tan
Weight
26.31 g
Chemical Resistant
YES
Oil Resistant
Yes
UV Resistant
NO
Halogen Free
NO
Submersible
NO
Direct Burial
NO
Movement Type
Stationary/Flexible
Application
Power
Gauge
18 AWG
Number of conductors
5
Cable configuration
18 AWG (≈ 30/32)/5c
Stranding type
bare copper, fine strands
Insulation type
PVC
Shielded
No
Voltage
300
Approvals
CE, EAC, RoHS
RoHS
YES
Temperature range
-30°C to +70°C

Outside diameter (OD)

0.264 in

UOM

CSA Certification

UL Certification

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3050580 Description

SAB 3050580 Data and Sensor Cable is part of LiYY product family, and is designed for Power applications. This cable is 18 AWG with 5 conductors, and 18 AWG (≈ 30/32)/5c cable configuration. Featuring Grayish Tan color jacket, PVC insulation, and bare copper, fine strands stranding. It has 0.264 in OD, constructed to support Stationary/Flexible movement type, and rated for 300 volts. This Power cable can operate in -30°C to +70°C temperature range, it is chemical resistant, oil resistant, and has following approvals: CE, EAC, RoHS. This cable is an excellent choice for Power applications.
