2041805 SAB Multiconductor Cables

2041805 on Powermatic Associates
SAB

Part#:2041805

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

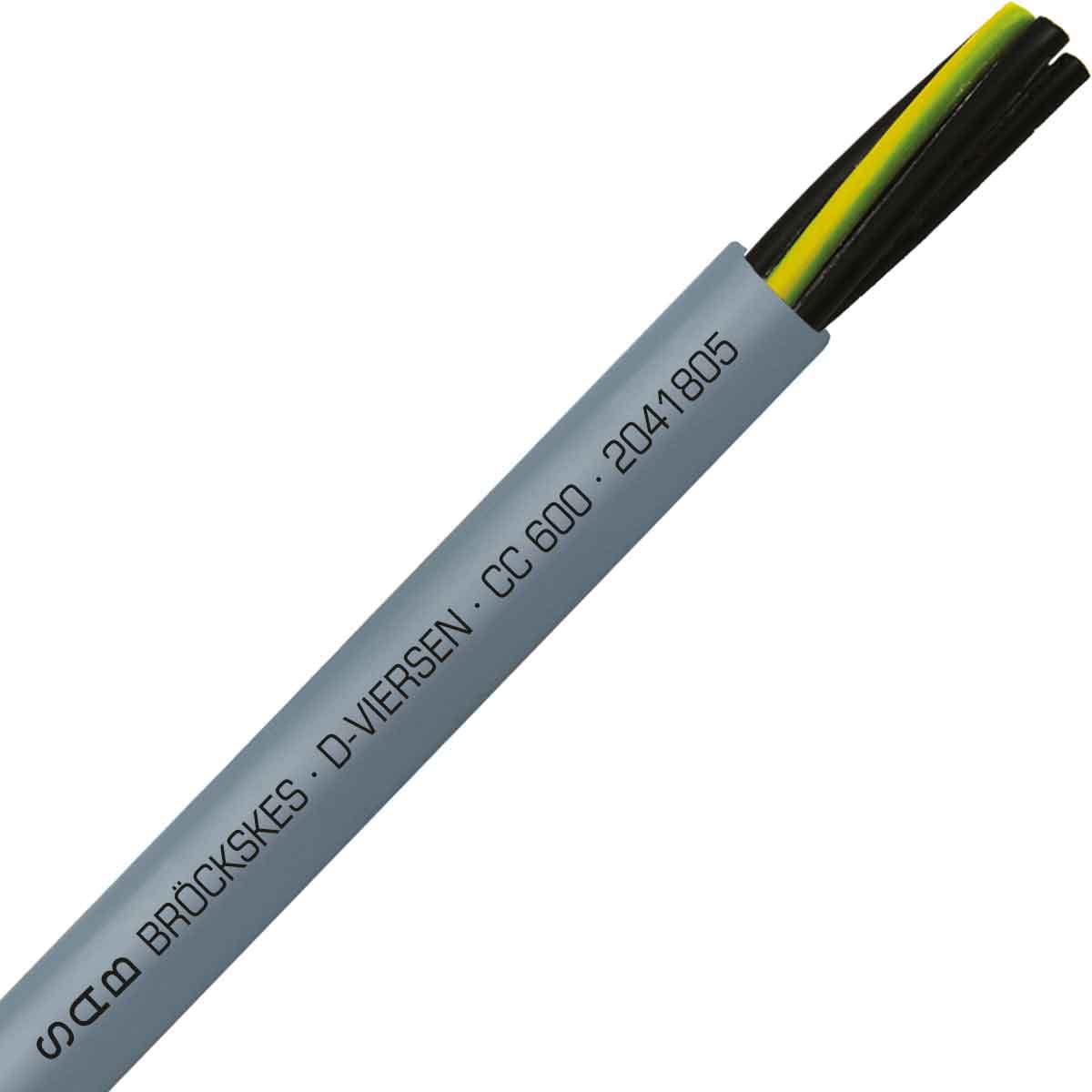

CC 600 - 18 AWG/5c, oil resistant PVC flexible control cable, 600V, UL, CSA, VDE, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Multiconductor Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 2041805 SAB price in the box on the right side or send a quick quote.

Product Details

  • Color
    Gray
  • Weight
    31.30 g
  • Chemical Resistant
    YES
  • Oil Resistant
    Yes
  • UV Resistant
    NO
  • Halogen Free
    NO
  • Submersible
    NO
  • Direct Burial
    NO
  • Movement Type
    Stationary/Flexible
  • Application
    Control, Power
  • Gauge
    18 AWG
  • Number of conductors
    5
  • Cable configuration
    18 AWG (≈ 30/32)/5c
  • Stranding type
    bare copper strands, class 5
  • Insulation type
    PVC
  • Shielded
    No
  • Voltage
    600
  • Approvals
    UR AWM, CSA AWM, VDE, CE, EAC, RoHS
  • RoHS
    YES
  • Temperature range
    -40°C to +90°C
  • Outside diameter (OD)
    0.307 in
  • UOM
    ft
  • CSA Certification
    YES
  • UL Certification
    YES
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

2041805 Description

SAB 2041805 Flexible Control Cable is part of CC 600 product family, and is designed for Control, Power applications. This cable is 18 AWG with 5 conductors, and 18 AWG (≈ 30/32)/5c cable configuration. Featuring Gray color jacket, PVC insulation, and bare copper strands, class 5 stranding. It has 0.307 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +90°C temperature range, it is chemical resistant, oil resistant, and has following approvals: UR AWM, CSA AWM, VDE, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.

Related documents 2041805 Specs

2041805 CC_600.pdf

Manufacturer warranty

$1.01

Request a quote, and we will send availability within minutes.

Select Qty:

$1.01

$1.01 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
