17774631 SAB Ethernet Cables

17774631 on Powermatic Associates

SAB

Part#:17774631

Manufacturer:SAB

Category:Ethernet Cables

Product Lifecycle:Active

Get a quick Quote!

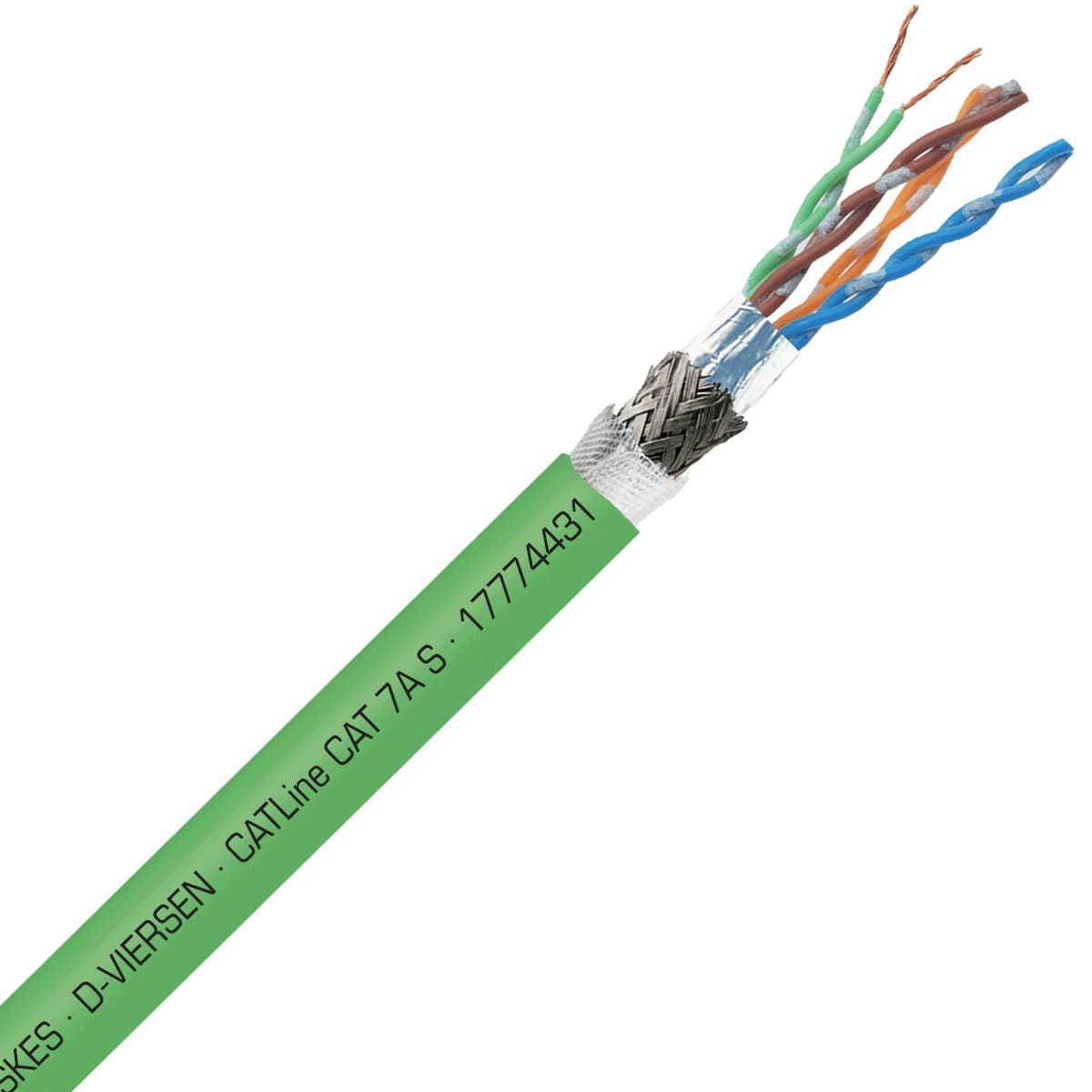

CATLine CAT 7A S - 26 AWG/4pr, shielded halogen-free continuous flex CAT 7A ethernet cable, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Ethernet Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 17774631 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Green
Weight
24.69 g
Chemical Resistant
NO
Oil Resistant
Yes
UV Resistant
NO
Halogen Free
YES
Submersible
NO
Direct Burial
NO
Movement Type
Continuous Flex
Application
Data
Gauge
26 AWG
Pair count
4
Number of conductors
8
Cable configuration
26 AWG (≈ 7/34)/4pr
Stranding type
bare copper, fine strands
Insulation type
Special Polymer
Shielded
Yes
Voltage
90
Approvals
UR AWM, CSA AWM, CE, EAC, RoHS
RoHS
YES

Temperature range

-40°C to +80°C

Outside diameter (OD)

0.335 in

UOM

ft

CSA Certification

YES

UL Certification

YES

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

17774631 Description

SAB 17774631 Ethernet Cable is part of CATLine CAT 7A S product family, and is designed for Data applications. This cable is 26 AWG with 8 conductors, and shielded 26 AWG (≈ 7/34)/4pr cable configuration. Featuring Green color jacket, Special Polymer insulation, and bare copper, fine strands stranding. It has 0.335 in OD, constructed to support Continuous Flex movement type, and rated for 90 volts. This Data cable can operate in -40°C to +80°C temperature range, it is oil resistant, Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Data applications.

Related documents 17774631 Specs

17774631 CATLine_CAT_7A_S-7A_RT.pdf
