15679004 SAB Ethernet Cables

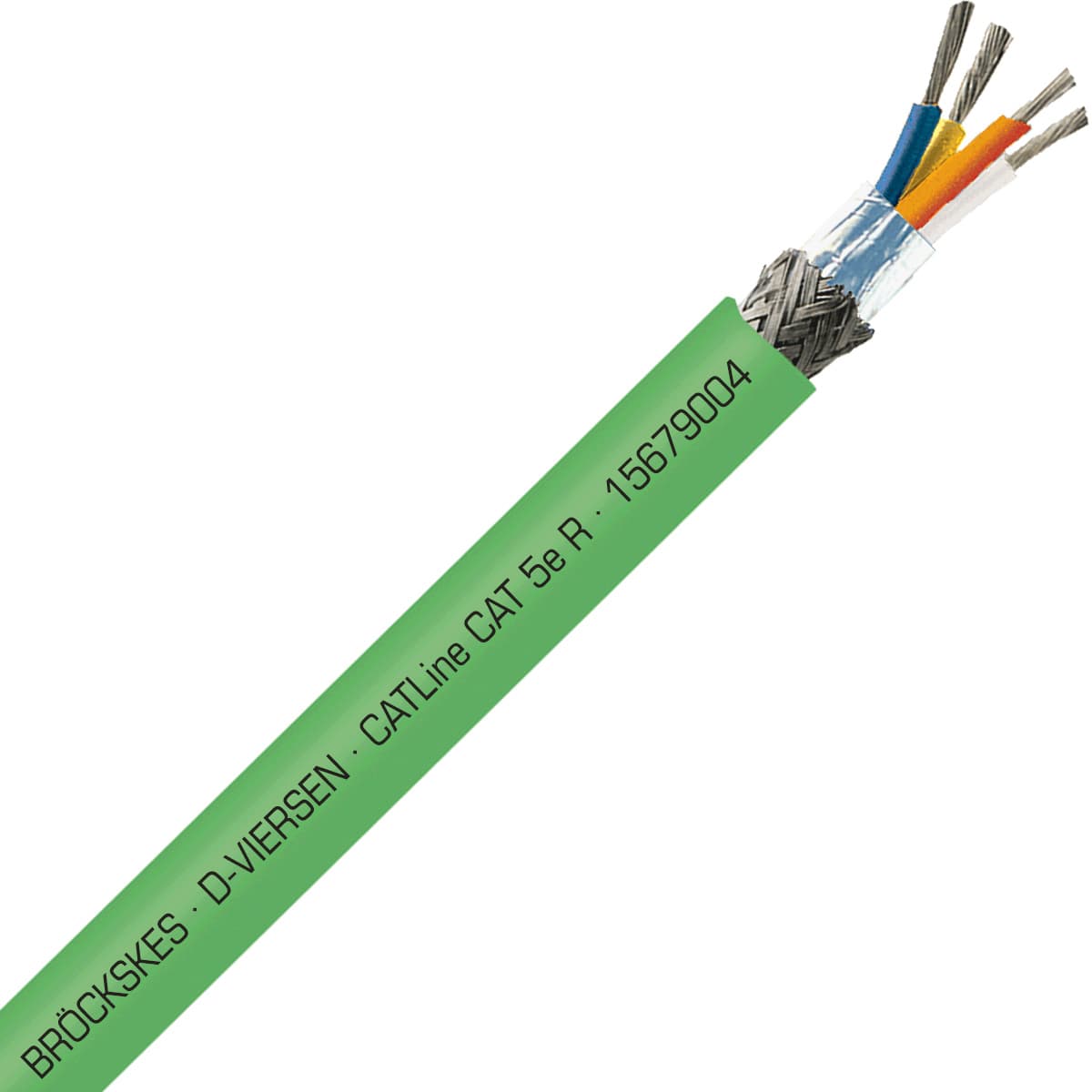

SAB 15679004 CATLine CAT5e R - 22 AWG/2pr, shielded halogen-free CAT 5e ethernet cable for Rail applications, CE, RoHS
SAB

Part#:15679004

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

CATLine CAT5e R - 22 AWG/2pr, shielded halogen-free CAT 5e ethernet cable for Rail applications, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Ethernet Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 15679004 SAB price in the box on the right side or send a quick quote.

Product Details

  • Color
    Green
  • Weight
    15.85 g
  • Chemical Resistant
    NO
  • Oil Resistant
    No
  • UV Resistant
    NO
  • Halogen Free
    YES
  • Submersible
    NO
  • Direct Burial
    NO
  • Movement Type
    Torsional
  • Application
    Data
  • Gauge
    22 AWG
  • Pair count
    2
  • Number of conductors
    4
  • Cable configuration
    22 AWG (≈ 7/30)/2pr
  • Stranding type
    bare copper, fine strands
  • Insulation type
    PE
  • Shielded
    Yes
  • Voltage
    90
  • Approvals
    CE, RoHS
  • RoHS
    YES
  • Temperature range
    -40°C to +70°C
  • Outside diameter (OD)
    0.232 in
  • UOM
    ft
  • CSA Certification
    NO
  • UL Certification
    NO
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

15679004 Description

SAB 15679004 Ethernet Cable is part of CATLine CAT 5e R product family, and is designed for Data applications. This cable is 22 AWG with 4 conductors, and shielded 22 AWG (≈ 7/30)/2pr cable configuration. Featuring Green color jacket, PE insulation, and bare copper, fine strands stranding. It has 0.232 in OD, constructed to support Torsional movement type, and rated for 90 volts. This Data cable can operate in -40°C to +70°C temperature range, it is Halogen free, and has following approvals: CE, RoHS. This cable is an excellent choice for Data applications.

Related documents 15679004 Specs

15679004 CATLine_CAT_5e_6A_7A_R.pdf
