1281804 SAB High Temperature Cables
Part#:1281804
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

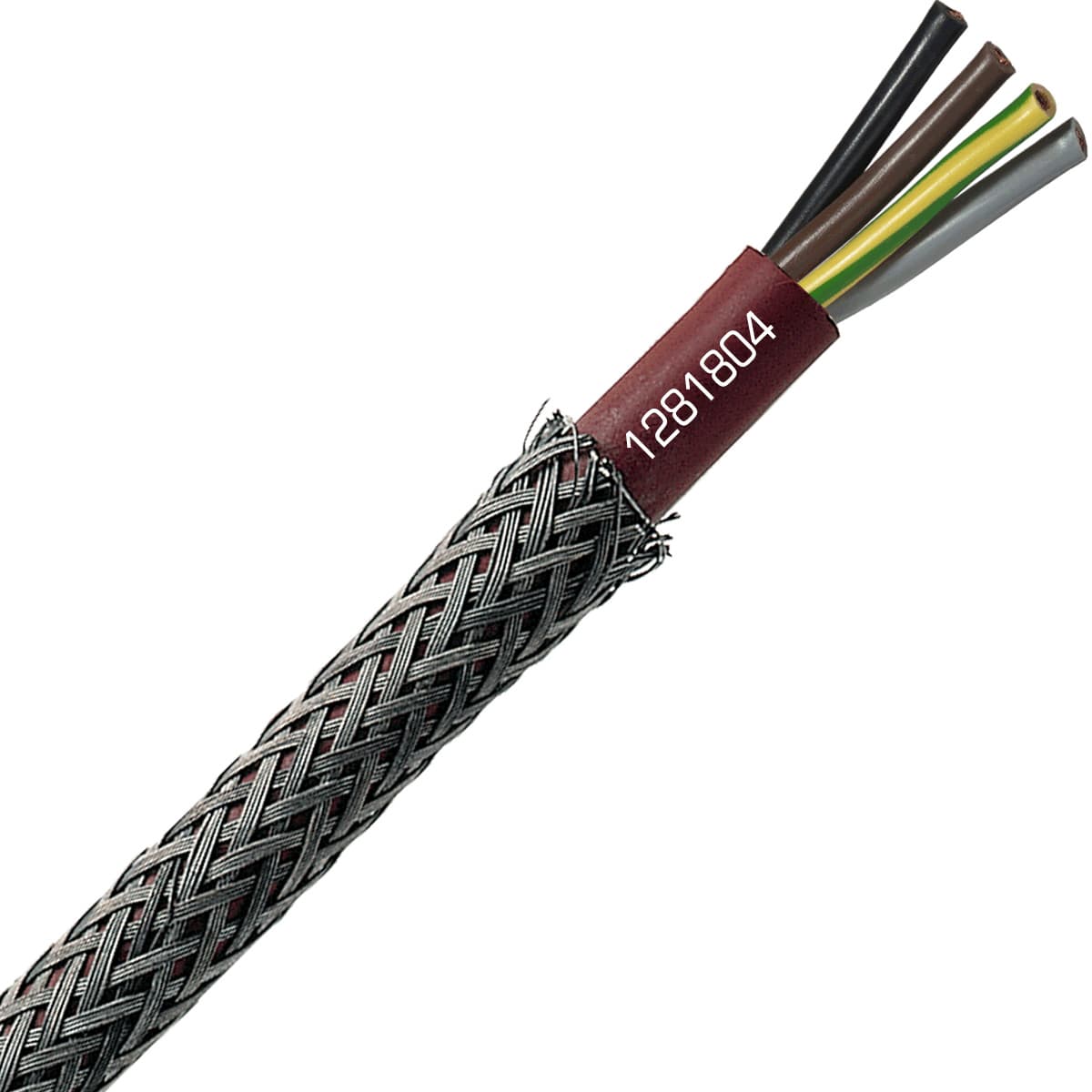

SC 600 HDTRS - 18 AWG/4c, high temperature steel wire shield silicone cable, UL CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 1281804 SAB price in the box on the right side or send a quick quote.
Product Details
- Halogen Free YES
- Application Control, Power
- Insulation type Besilen (silicone)
- Voltage 600
- Outside diameter (OD) 0.315 in
- CE Certification YES
- UV Resistant NO
- Direct Burial NO
- Stranding type tinned copper strands, class 5
- Color Reddish Brown
- Temperature range -40°C to +180°C; +200°C (2000h); +250°C (short-term use)
- Oil Resistant No
- Submersible NO
- Number of conductors 4
- Weight 29.48 g
- RoHS YES
- UOM ft
- Chemical Resistant NO
- Movement Type Stationary/Flexible
- Cable configuration 18 AWG (≈ 30/32)/4c
- CSA Certification YES
- Gauge 18 AWG
- Shielded Yes
- Approvals UR AWM, CSA AWM, CE, EAC, RoHS
- UL Certification YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
1281804 Description
SAB 1281804 High Temperature Cable is part of SC 600 HDTRS product family, and is designed for Control, Power applications. This cable is 18 AWG with 4 conductors, and shielded 18 AWG (≈ 30/32)/4c cable configuration. Featuring Reddish Brown color jacket, Besilen (silicone) insulation, and tinned copper strands, class 5 stranding. It has 0.315 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +180°C; +200°C (2000h); +250°C (short-term use) temperature range, it is Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
