1271618 SAB High Temperature Cables
Part#:1271618
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

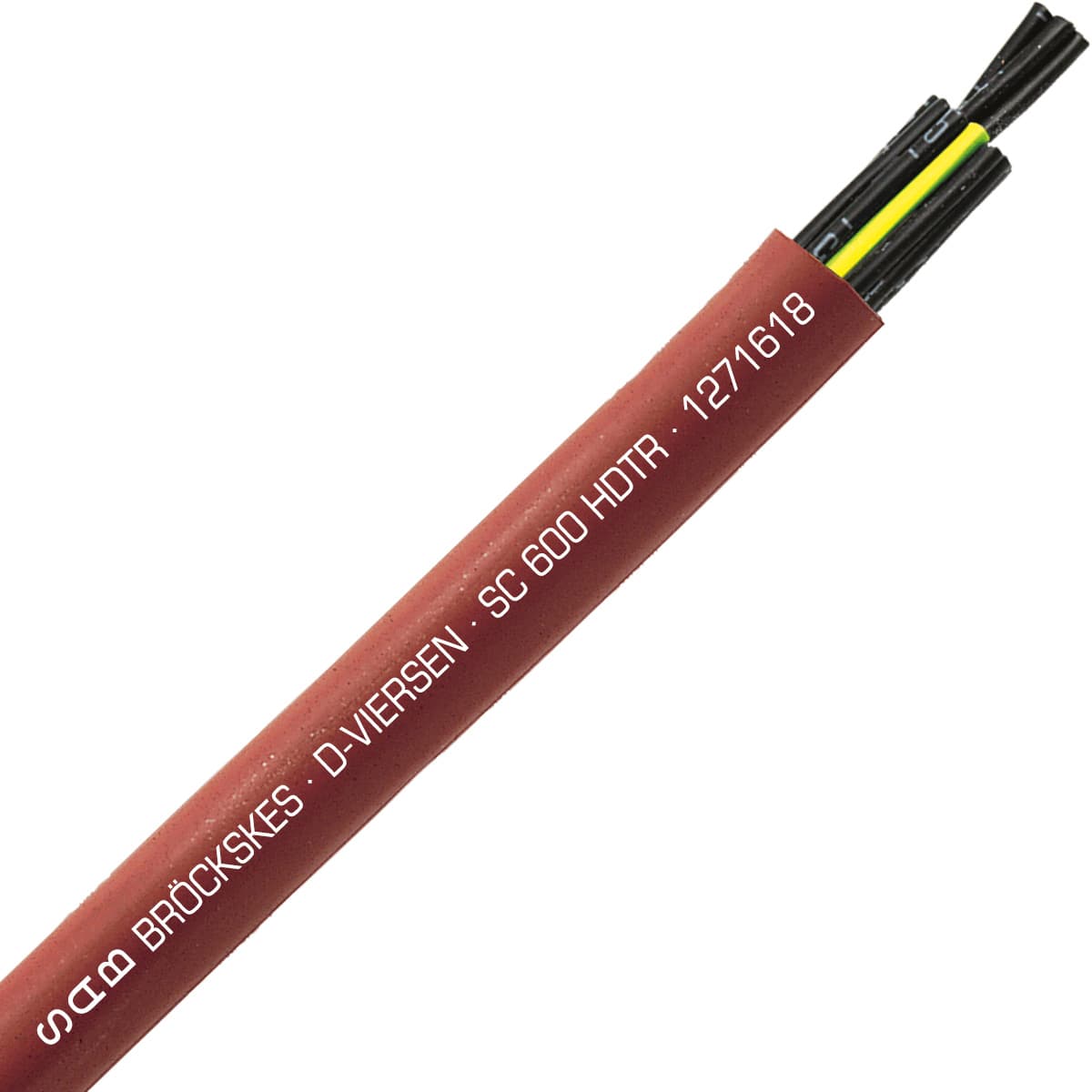

SC 600 HDTR - 16 AWG/18c, tear resistant high temperature silicone cable, UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 1271618 SAB price in the box on the right side or send a quick quote.
Product Details
- Temperature range -40°C to +180°C; +200°C (2000h); +250°C (short-term use)
- Oil Resistant No
- Submersible NO
- Halogen Free YES
- Stranding type tinned copper strands, class 5
- Chemical Resistant NO
- Voltage 600
- Weight 115.67 g
- RoHS YES
- Application Control, Power
- Color Reddish Brown
- Outside diameter (OD) 0.614 in
- Movement Type Stationary/Flexible
- Shielded No
- Cable configuration 16 AWG (≈ 27-29/30)/18c
- Approvals UR AWM, CSA AWM, CE, EAC, RoHS
- UL Certification YES
- UV Resistant NO
- UOM ft
- Direct Burial NO
- Number of conductors 18
- Insulation type Besilen (silicone)
- CE Certification YES
- Gauge 16 AWG
- CSA Certification YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
1271618 Description
SAB 1271618 High Temperature Cable is part of SC 600 HDTR product family, and is designed for Control, Power applications. This cable is 16 AWG with 18 conductors, and 16 AWG (≈ 27-29/30)/18c cable configuration. Featuring Reddish Brown color jacket, Besilen (silicone) insulation, and tinned copper strands, class 5 stranding. It has 0.614 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +180°C; +200°C (2000h); +250°C (short-term use) temperature range, it is Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
