1271610 SAB High Temperature Cables
Part#:1271610
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

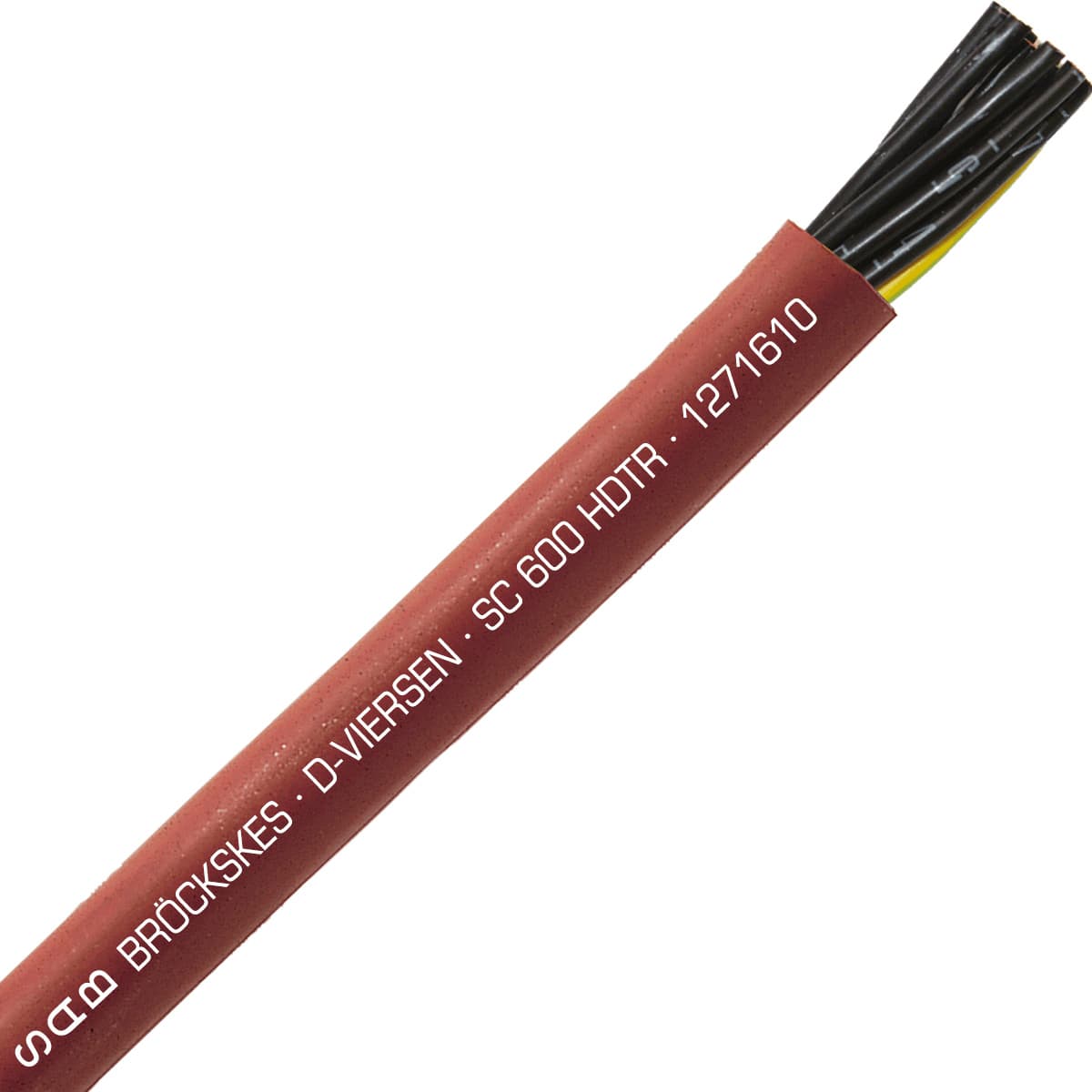

SC 600 HDTR - 16 AWG/10c, tear resistant high temperature silicone cable, UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 1271610 SAB price in the box on the right side or send a quick quote.
Product Details
- Weight 68.04 g
- CSA Certification YES
- Oil Resistant No
- Gauge 16 AWG
- UOM ft
- UV Resistant NO
- Halogen Free YES
- Direct Burial NO
- Stranding type tinned copper strands, class 5
- Approvals UR AWM, CSA AWM, CE, EAC, RoHS
- Outside diameter (OD) 0.496 in
- Chemical Resistant NO
- UL Certification YES
- Movement Type Stationary/Flexible
- Cable configuration 16 AWG (≈ 27-29/30)/10c
- Voltage 600
- Insulation type Besilen (silicone)
- RoHS YES
- Submersible NO
- Shielded No
- Number of conductors 10
- Color Reddish Brown
- Application Control, Power
- Temperature range -40°C to +180°C; +200°C (2000h); +250°C (short-term use)
- CE Certification YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
1271610 Description
SAB 1271610 High Temperature Cable is part of SC 600 HDTR product family, and is designed for Control, Power applications. This cable is 16 AWG with 10 conductors, and 16 AWG (≈ 27-29/30)/10c cable configuration. Featuring Reddish Brown color jacket, Besilen (silicone) insulation, and tinned copper strands, class 5 stranding. It has 0.496 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +180°C; +200°C (2000h); +250°C (short-term use) temperature range, it is Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
Related documents 1271610 Specs
