1271410 SAB High Temperature Cables
Part#:1271410
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

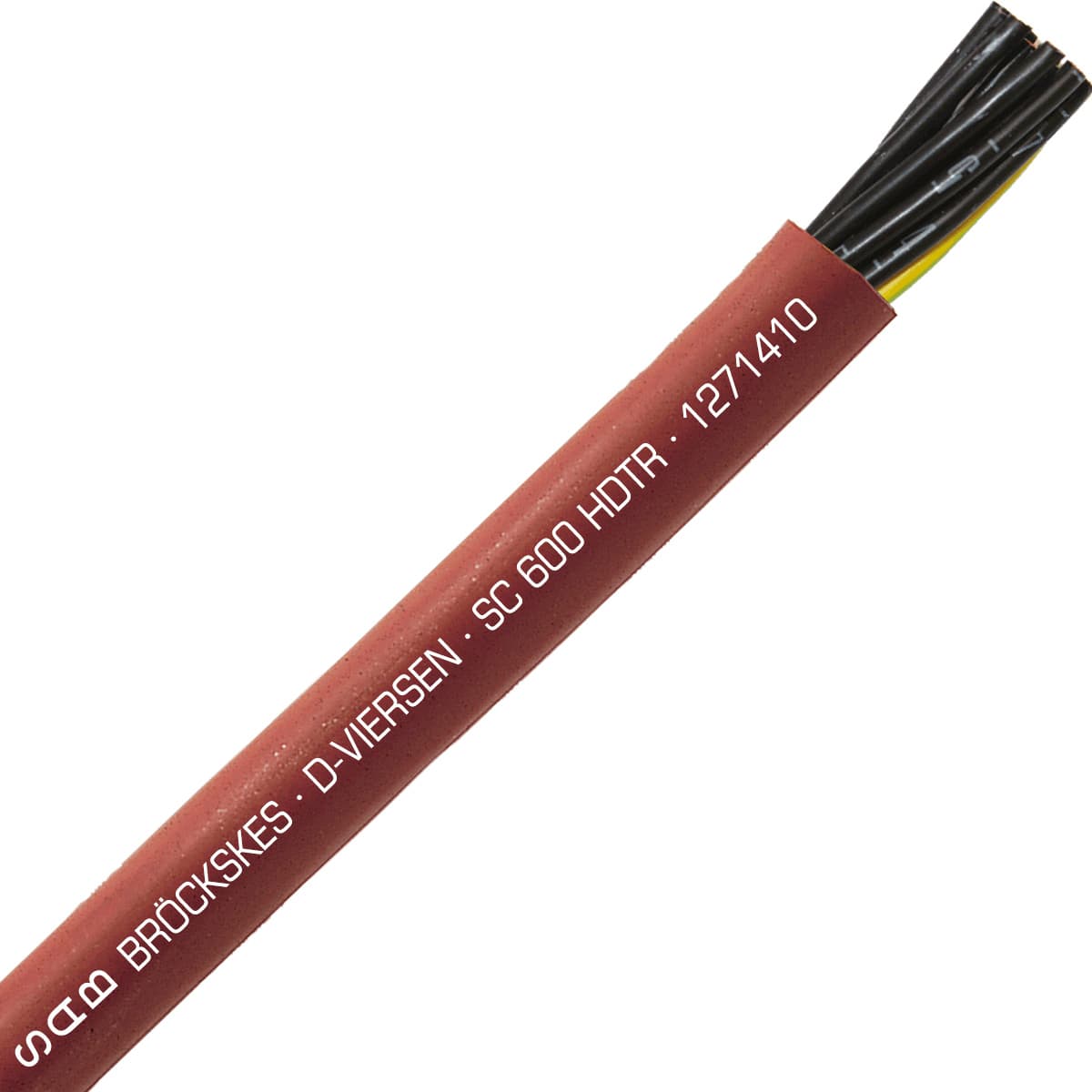

SC 600 HDTR - 14 AWG/10c, tear resistant high temperature silicone cable, UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 1271410 SAB price in the box on the right side or send a quick quote.
Product Details
- Halogen Free YES
- Gauge 14 AWG
- Shielded No
- RoHS YES
- Oil Resistant No
- Movement Type Stationary/Flexible
- Stranding type tinned copper strands, class 5
- Approvals UR AWM, CSA AWM, CE, EAC, RoHS
- CSA Certification YES
- UV Resistant NO
- Application Control, Power
- Insulation type Besilen (silicone)
- Temperature range -40°C to +180°C; +200°C (2000h); +250°C (short-term use)
- UL Certification YES
- Weight 109.32 g
- Submersible NO
- Number of conductors 10
- Color Reddish Brown
- Outside diameter (OD) 0.622 in
- CE Certification YES
- Chemical Resistant NO
- Direct Burial NO
- Cable configuration 14 AWG (≈ 46/30)/10c
- Voltage 600
- UOM ft
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
1271410 Description
SAB 1271410 High Temperature Cable is part of SC 600 HDTR product family, and is designed for Control, Power applications. This cable is 14 AWG with 10 conductors, and 14 AWG (≈ 46/30)/10c cable configuration. Featuring Reddish Brown color jacket, Besilen (silicone) insulation, and tinned copper strands, class 5 stranding. It has 0.622 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +180°C; +200°C (2000h); +250°C (short-term use) temperature range, it is Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
