1241807 SAB High Temperature Cables

Name: 1241807
Brand: SAB

Part#:1241807

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

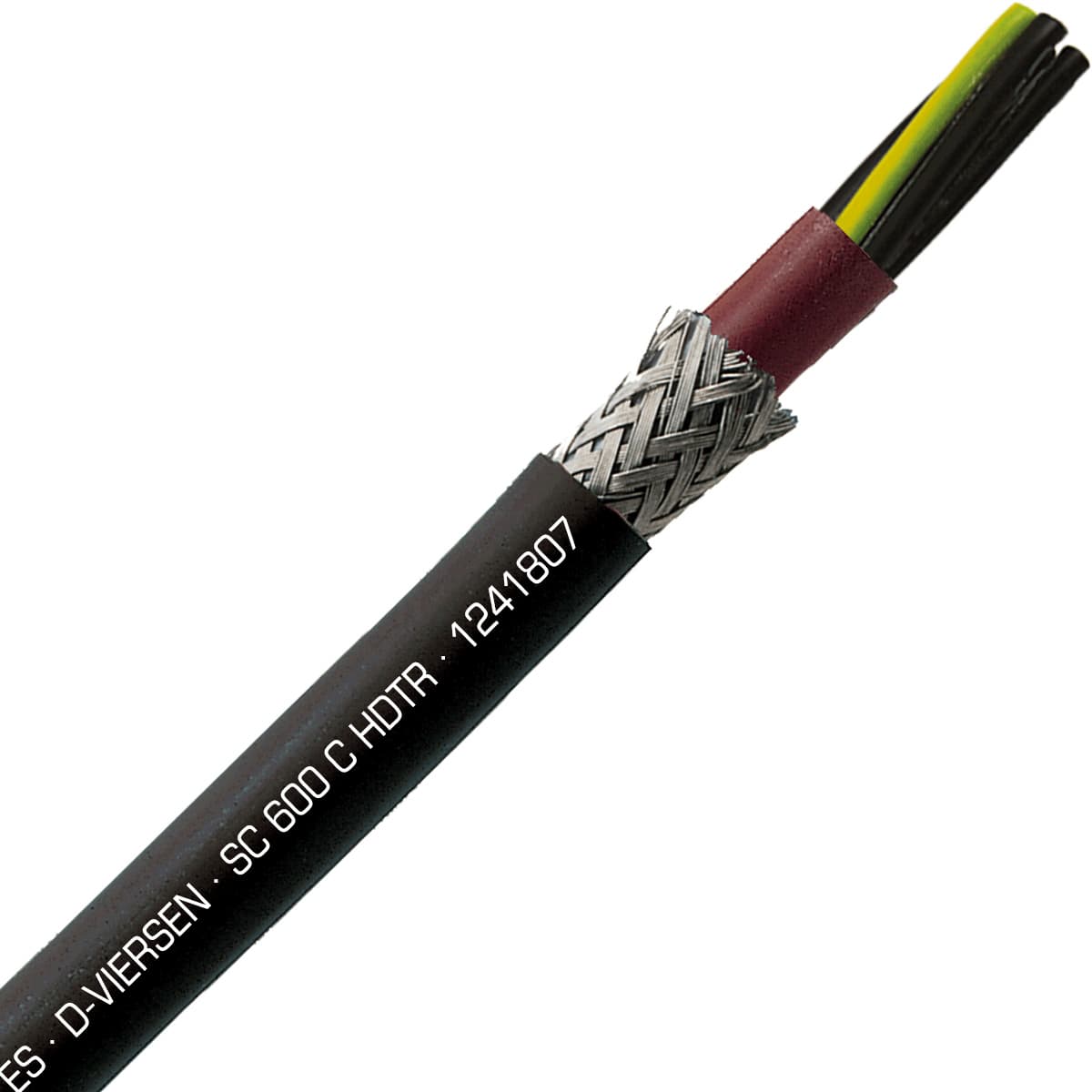

SC 600 C HDTR - 18 AWG/7c, shielded halogen free high temperature silicone cable, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 1241807 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Black
Weight
61.69 g
Chemical Resistant
NO
Oil Resistant
No
UV Resistant
NO
Halogen Free
YES
Submersible
NO
Direct Burial
NO
Movement Type
Stationary/Flexible
Application
Control, Power
Gauge
18 AWG
Number of conductors
7
Cable configuration
18 AWG (≈ 30/32)/7c
Stranding type
tinned copper strands, class 5
Insulation type
Besilen (silicone)
Shielded
Yes
Voltage
600
Approvals
UR AWM, CSA AWM, CE, EAC, RoHS
RoHS
YES
Temperature range
-40°C to +180°C; +200°C (2000 h); +250°C (short-term use)

Outside diameter (OD)

0.433 in

UOM

CSA Certification

YES

UL Certification

YES

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1241807 Description

SAB 1241807 High Temperature Cable is part of SC 600 C HDTR product family, and is designed for Control, Power applications. This cable is 18 AWG with 7 conductors, and shielded 18 AWG (≈ 30/32)/7c cable configuration. Featuring Black color jacket, Besilen (silicone) insulation, and tinned copper strands, class 5 stranding. It has 0.433 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +180°C; +200°C (2000 h); +250°C (short-term use) temperature range, it is Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
