PAXP0000 Red Lion Industrial Automation Components

PAXP0000 on Powermatic Associates
Red Lion

Part#:PAXP0000

Manufacturer:Red Lion

Product Lifecycle:Active

Get a quick Quote!

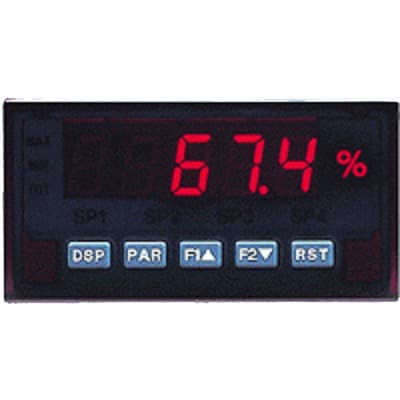

Red Lion PAXP0000 is a digital process meter from the PAX series, designed with 3 user inputs and a 1/8 DIN form factor measuring 96mm in width and 48mm in height (3.80" x 1.95"), featuring 14.2mm red digits and communication capability. It offers a degree of protection rated at IP65 NEMA 4X, suitable for various industrial environments. The meter operates on a supply voltage of 11-36Vdc, accommodating both 12Vdc and 24Vdc systems. It has a 20Hz analog input sampling rate, with one analog input supporting both 0-20mA and 0-10Vdc signals with 16-bits conversion. Additionally, it includes three digital inputs that can function as either Sink or Source (USER INPUT) and one analog output for retransmission purposes.

About the manufacturer: Red Lion is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Red Lion Controls has been a reliable supplier to customers globally for over 40 years. Our highly regarded industrial automation and networking solutions provide vital information and controls to improve efficiency, seamlessly integrating with various devices and applications.

Check out the PAXP0000 Red Lion price in the box on the right side or send a quick quote.

Product Details

  • Display
    1 row x 5-digits red characters (14.2mm / 0.56" high) LED display
  • Analog outputs
    1 x analog output (retransmission)
  • Compliant with standard(s)
    CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant
  • Sub-range name
    PAX series
  • Primary brand
    Red Lion
  • Supply voltage (AC)
    85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Degree of protection
    IP65 NEMA 4X
  • Replaces
    IMP20060 IMP20160 IMP20162 IMP23160 IMP23162 IMP23163 IMP23167 IMP23169
  • Main function
    Meter (Digital)
  • Functions
    Process meter
  • Design
    3 user inputs 1/8 DIN (96x48mm) 14.2mm red digits communication capability
  • Frequency
    20Hz analog input sampling rate
  • Product series / family name
    Process indicators
  • Analog inputs
    1 x analog input (0-20mA / 0-10Vdc; 16-bits conversion)
  • Dimensions
    1/8 DIN horizontal (W96mm x H48mm / 3.80" x 1.95")
  • Digital inputs
    3 x digital inputs (Sink/Source) (USER INPUT)
  • Order code / Manufacturer SKU
    PAXP0000

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents PAXP0000 Specs

PAXP0000 Red Lion - PAX ANALOG - Product Manual.pdf

Manufacturer warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
