3200195 Phoenix Contact Electrical Wires & Cables

3200195 on Powermatic Associates
Phoenix Contact

Part#:3200195

Manufacturer:Phoenix Contact

Category:Electrical Wires & Cables

Product Lifecycle:Active

314 in stock

Mar 14, 2025

Product description

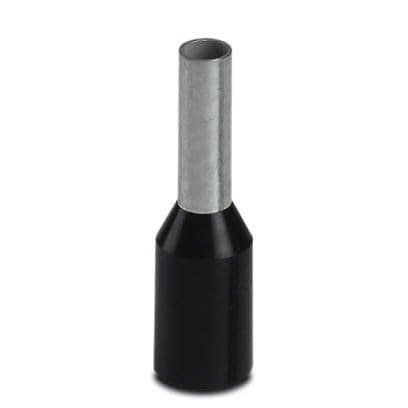

Ferrule, sleeve length: 10 mm, length: 16 mm, color: black

Product Details

  • UNSPSC 11
    27121703
  • UNSPSC 20.0
    27121703
  • Length (b)
    16 mm
  • Max. permanent temperature
    105 °C (-40°C no load / 0°C dynamic load)
  • Ferrule diameter
    1.7 mm
  • Coating
    tin-plated (galvanic)
  • ECLASS 10.0.1
    27400201
  • ECLASS 4.0
    27060700
  • ETIM 4.0
    EC000005
  • ETIM 6.0
    EC000005
  • UNSPSC 19.0
    27121703
  • UNSPSC 21.0
    27121703
  • Sleeve wall thickness
    0.15 mm
  • Material
    CU-DHP
  • China RoHS
    Environmentally friendly use period: unlimited = EFUP-e
  • ECLASS 6.0
    27400200
  • ECLASS 9.0
    27400201
  • UNSPSC 7.0901
    27121703
  • UNSPSC 13.2
    27121703
  • Sleeve length
    10 mm
  • Color
    black
  • Connection in acc. with standard
    CSA
  • Components
    free from silicone and halogen
  • ECLASS 4.1
    27060700
  • ECLASS 7.0
    27400201
  • ETIM 7.0
    EC000005
  • UNSPSC 18.0
    27121703
  • Maximum stripping length
    13 mm
  • Insulating collar thickness
    0.3 mm
  • Conductor category
    Stranded conductors, class 2, 5, 6 / B, C, K, M
  • Design according to standard
    DIN 46228-4:2017-05
  • ECLASS 5.1
    27400200
  • ETIM 3.0
    EC000005
  • UNSPSC 6.01
    30212109
  • Inner dimension of the insulating collar (d)
    3.4 mm
  • Short-term temperature
    120 °C
  • Flammability rating according to UL 94
    HB
  • ECLASS 11.0
    27400201
  • ECLASS 5.0
    27400200
  • ETIM 2.0
    EC000005
  • UNSPSC 12.01
    27121703

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


Manufacturer warranty
