Powermatic Associates Logo

6311ZZC3 NSK Mechanical Components

6311ZZC3 on Powermatic Associates
NSK

Part#:6311ZZC3

Manufacturer:NSK

Category:Mechanical Components

Product Lifecycle:Active

Product description

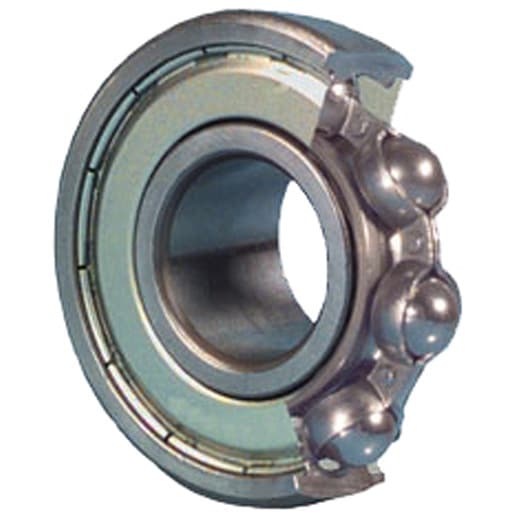

Single Row Ball Bearing; 55MM Bore; 120MM Outside Diameter; 29MM Outer Race Width; 2 Metal Shields; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C3-Loose Internal Clearance; Steel Cage

Product Details

  • Outer Race Width
    1.142 Inch | 29 Millimeter
  • Bore
    2.165 Inch | 55 Millimeter
  • Other Features
    Deep Groove
  • Outside Diameter
    4.724 Inch | 120 Millimeter
  • Inch - Metric
    Metric
  • Weight / LBS
    1.37
  • Internal Clearance
    C3-Loose
  • Cage Material
    Steel
  • Minimum Buy Quantity
    N/A
  • Internal Special Features
    No
  • Precision Class
    ABEC 1 | ISO P0
  • Snap Ring
    No
  • Enclosure
    2 Metal Shields
  • Rolling Element
    Ball Bearing
  • Weight / Kilogram
    1.37
  • CATEGORY
    Single Row Ball Bearings
  • Brand
    NSK
  • Maximum Capacity / Filling Slot
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
