MP350A4R-CC Nidec DC Drives

MP350A4R-CC on Powermatic Associates
Nidec

Part#:MP350A4R-CC

Manufacturer:Nidec

Category:DC Drives

Product Lifecycle:Active

Product description

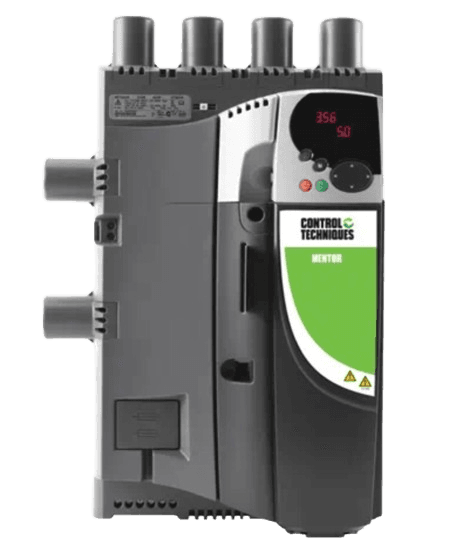

NIDEC MP350A4R-CC is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 4 quadrant operation with a conformal coating on PCB and air cooling. It operates within an ambient air temperature range of -15°C to +60°C and has a rated current of 350A. The supply voltage ranges from 24Vac to 480Vac, accommodating multiple standards including 48Vac, 120Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, and 415Vac. This model comes in a frame size 2A with dimensions of H25.2" x W19.49" x D11.85" (H640mm x W495mm x D301mm) and offers a degree of protection rated at IP10. It supports a 3-phase input network and is compatible with various communication protocols such as EtherCAT, PROFIBUS, Ethernet, DeviceNet, CANopen, and INTERBUS. The device features 3 digital outputs (240mA total including term.22 / 0-24Vdc; source), 2 digital outputs (5A / 240Vac; source; relay contact type), 1 analog input (-10Vdc to 10Vdc; differential with 14-bit conversion resolution), 2 analog inputs (0-20mA / 4-20mA / -10Vdc to 10Vdc; single-ended with 10-bit conversion resolution), and 6 digital inputs (0-24Vdc). It has a rated active power of 125kW, rated power of 200HP, and 2 analog outputs (0-20mA / 4-20mA / -10Vdc to 10Vdc; source; single-ended with 10-bit conversion resolution).

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

MP350A4R-CC Nidec
