MPDB67001 Mersen Fuse Holders

MPDB67001 on Powermatic Associates
Mersen

Part#:MPDB67001

Alt. Part#:782001450854

Manufacturer:Mersen

Category:Fuse Holders

Product Lifecycle:Active

Only 5 left in stock. Order Now!

Apr 24, 2025

Product description

MPDB67001 Mersen Open-Style PDB UL 1953 1000V 250A Tin-plated Aluminum - 310A 1-Pole 1 - 1 openings; 350-#6 --- 350-#6 Box to Box

Product Details

  • Number of Poles
    1 Pole
  • Current Rating
    310 A
  • Weight
    272.4 g
  • Voltage
    1000 V
  • Product Weight
    0.6 lb
  • Sell Pack Length
    11.31 in
  • Sell Pack Height
    3.31 in
  • Sell Pack Width
    5.06 in
  • Product Width
    1.85 in
  • Sell Pack Weight
    3.78 lb
  • Product Height
    3.25 in
  • Sell Pack Quantity
    6 Each
  • Product Length
    3.08 in
  • Wire Range (Secondary)
    350-#6
  • Installation Mounting
    Direct Screw Mount
  • Wire Range (Primary)
    350-#6
  • Torque Rating (Secondary)
    350-#6 275
  • Hole Diameter (Secondary)
    0.75 in
  • Torque Rating (Primary)
    350-#6 275
  • Hole Diameter (Primary)
    0.75 in
  • Connector Type (Secondary)
    Box
  • Hex/Screw Size & Type (Secondary)
    11/16-16 x .88
  • Hex/Screw Size & Type (Primary)
    11/16-16 x .88
  • Connector Type (Primary)
    Box
  • Number of Openings per Pole (Secondary)
    1
  • Number of Openings per Pole (Primary)
    1
  • Connector Material
    Tin-plated Aluminum
  • Number of Poles
    1-pole
  • Short Circuit Rating (Class T)
    400 kA
  • Body/Insulating Material
    GFPC
  • Rated voltage AC UL
    1000 V
  • ROHS Compliant
    Yes
  • Short Circuit Rating (Class RK5)
    100 kA
  • Rated voltage DC UL
    1000 V
  • Short Circuit Rating (Class CC)
    30 kA
  • Short Circuit Rating (Class RK1)
    200 kA
  • Short Circuit Rating (Class L)
    400 kA
  • Short Circuit Rating (Class G)
    60 kA
  • Short Circuit Rating (Class J)
    400 kA
  • Short Circuit Rating (Standalone)
    10 kA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

MPDB67001 Mersen Open-Style PDB UL 1953 1000V 250A Tin-plated Aluminum - 310A 1-Pole 1 - 1 openings; 350-#6 --- 350-#6 Box to Box | The Next Generation Power Distribution Block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code®. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series), and large (MPDB68 and MPDB69 series), in both aluminum and copper. | *Adder Poles: All sizes have optional adder poles for increased flexibility and ease-of-use. Adder poles can be stacked to form multi-pole units in the field without the use of tools. Adder poles allow for customization of primary and secondary wire combinations. End barriers are also available for sale, catalog numbers can be found in the catalog number selection tables for each size block.

*Wire Connectors: Standard aluminum and copper wire connectors are available. Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only. Connectors are all 1-piece tin-plated. Many part numbers are rated to accept DLO-type fine-strand wire, allowing users to connect flexible conductors.

*Insulators: Insulators are virtually unbreakable, made of glass-filled polycarbonate. “See-through,” hinged safety covers are optional and provide a greater degree of safety and shock resistance where required. Hinged covers can be installed without tools.

*Spacings: 1 inch through air and 2 inches over surface between uninsulated live parts of opposite polarity meets requir

MPDB67001 Related Documents

Mersen-DWG-701887-1P (STEP, 3824Ko).stepDS-MPDB-Series-UL1953-Open-Style-Power-Distribution-Blocks-Mersen (EN,PDF,251Ko).pdfMersen-DWG-701887 (DXF, 664Ko).dxfMersen-DWG-701887 (PDF, 92Ko).pdf

Similar products from: Mersen Fuse Holders

MPDB63144 on Powermatic Associates

MPDB63144

Mersen

MPDB63144 Mersen Open-Style PDB UL 1953 1000V 135A Tin-plated Aluminum - 175A 4-Pole 1 - 1 openings; 2/0-#14 --- 1/4-20 x 5/8 Box to Stud

5 in stock
6633 on Powermatic Associates

6633

Mersen

6633 Mersen - Fuse Block 600VAC 600VDC Class H/K 600A 3-Pole Box In-Line Clip

160 in stock

Manufacturer warranty

MPDB67001 Mersen

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

5

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare MPDB67001 with other Fuse Holders products

Number of Poles

Current Rating

Weight

Voltage

Product Weight

Sell Pack Length

Sell Pack Height

Sell Pack Width

Product Width

Sell Pack Weight

Selected product

MPDB67001
5 in stock
MPDB67001
Mersen

MPDB67001 Mersen Open-Style PDB UL 1953 1000V 250A Tin-plated Aluminum - 310A 1-Pole 1 - 1 openings;...

Number of Poles1 Pole

Current Rating310 A

Weight272.4 g

Voltage1000 V

Product Weight0.6 lb

Sell Pack Length11.31 in

Sell Pack Height3.31 in

Sell Pack Width5.06 in

Product Width1.85 in

Sell Pack Weight3.78 lb

MPDB63144
5 in stock
MPDB63144
Mersen

MPDB63144 Mersen Open-Style PDB UL 1953 1000V 135A Tin-plated Aluminum - 175A 4-Pole 1 - 1 openings;...

Number of Poles4 Pole

Current Rating175 A

Weight335.96 g

Voltage1000 V

Product Weight-

Sell Pack Length-

Sell Pack Height-

Sell Pack Width-

Product Width-

Sell Pack Weight-

6633
160 in stock
6633
Mersen

6633 Mersen - Fuse Block 600VAC 600VDC Class H/K 600A 3-Pole Box In-Line Clip

Number of Poles3 Pole

Current Rating600 A

Weight12439.6 g

Voltage600 VAC

Product Weight-

Sell Pack Length-

Sell Pack Height-

Sell Pack Width-

Product Width-

Sell Pack Weight-

About the manufacturer

Mersen

Powermatic Associates is an authorized Mersen distributor, renowned for delivering high-quality industrial products and solutions that cater to a diverse range of industries. Mersen, a global leader in electrical power and advanced materials, is dedicated to innovating and manufacturing products that protect electrical components and extend the life of equipment, ensuring safety and efficiency in ...

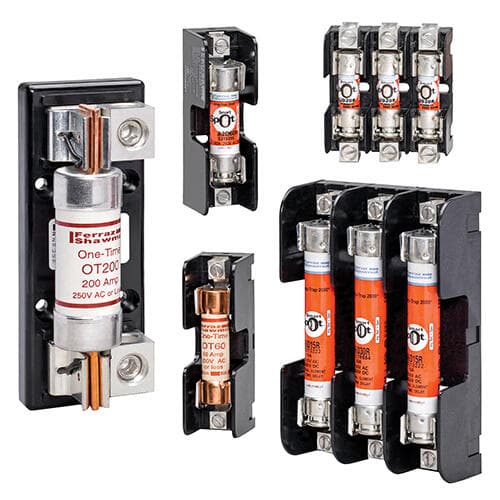

About the Product Category
