302225S Lapp Industrial Automation Components

302225S on Powermatic Associates
Lapp

Part#:302225S

Manufacturer:Lapp

Product Lifecycle:Active

Get a quick Quote!

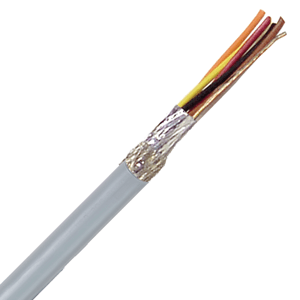

UNITRONIC 300 S 22/25C

About the manufacturer: Lapp is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Lapp Group is a leading worldwide provider of premium cables, wires, cable accessories, and systems.

Check out the 302225S Lapp price in the box on the right side or send a quick quote.

Product Details

  • Operating Temperature
    -25 degrees celsius, 105 degrees celsius
  • Voltage
    300 volts
  • Stranding
    Fine Wire
  • Jacket Color
    Gray
  • Jacket Material
    PVC
  • Insulation Material
    PVC
  • Conductor Material
    Finely Stranded Tinned Copper
  • Gauge
    22 american wire gauge
  • Bend Radius
    6 X Cable Diameter
  • SERIES
    UNITRONIC® 300 / 300S
  • MANUFACTURER PART NUMBER
    302225S
  • CONDUCTOR STRANDING
    Stranded
  • TRAY RATINGS
    UL PLTC
  • STANDARDS/APPROVALS
    UL Approved CSA Approved CE Approved
  • JACKET COLOR
    Gray
  • TYPE
    Data Signal & Control
  • FLEXIBILITY
    Flexible
  • SHIELDING
    Foil Braid
  • TEMPERATURE
    -40°F to +221°F-40°C to +105°C
  • CONDUCTOR MATERIAL
    Tinned copper
  • VOLTAGE
    300V
  • NUMBER OF CONDUCTORS
    25
  • NOMINAL OD (MM)
    11.3
  • NOMINAL OD (IN)
    0.445
  • AWG/GAUGE
    22
  • JACKET MATERIAL
    PVC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

302225S Description

Cable, Flexible, UNITRONIC 300 S, 22 AWG/25C, Shielded, 300V, UL CMG, UL PLTC, c(UL) CMG FT4
