2214070 Lapp Industrial Automation Components

Name: 2214070
Brand: Lapp

Part#:2214070

Manufacturer:Lapp

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

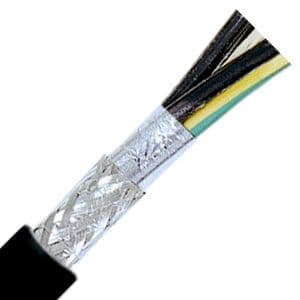

2214070 Lapp - ÖLFLEX TRAY II CY 7G2.5 14/7C

Product Details

Voltage
600 volts
Stranding
Class 5 Fine Wire
Operating Temperature
-25 degrees celsius, 90 degrees celsius
Jacket Material
Thermoplastic Polymer
Jacket Color
Black
Insulation Material
Nylon, PVC
Gauge
14 american wire gauge
Conductor Material
Finely Stranded Bare Copper
Bend Radius
6 X Cable Diameter
WEIGHT LBS/MFT
220
APPLICATION
Industrial plant expansions; automotive plants; tray wiring; anywhere VNTC® cables are used
MANUFACTURER PART NUMBER
2214070
UL STYLE / STANDARD
UL 13 UL 1063 UL 1277 UL 1690 UL 2250
STANDARDS/APPROVALS
UL Approved CSA Approved CE Approved
ATTRIBUTES
UL Oil Res I/IISunlight resistant Direct burialNFPA 79
TRAY RATINGS
UL ITC-ER UL PLTC-ER UL TC-ER
STATIC TEMPERATURE RATING
-40°F to +221°F-40°C to +105°C
INSULATION
PVC/Nylon
VOLTAGE
600V
TEMPERATURE RANGE
-13°F to +194°F -25°C to +90°C

DYNAMIC TEMPERATURE RATING

-13°F to +221°F -25°C to +105°C

NOMINAL OD (MM)

12.5

NOMINAL OD (IN)

0.494

CONDUCTOR STRANDING

Stranded

SHIELDING

Braid

CONDUCTOR MATERIAL

Bare copper

JACKET MATERIAL

Thermoplastic Polymer

NUMBER OF CONDUCTORS

CONDUCTOR COLOR

Black with white printing plus green/yellow ground

AWG/GAUGE

JACKET COLOR

Black

SERIES

ÖLFLEX® TRAY II / TRAY II CY

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Cable, Flexible, ÖLFLEX TRAY II CY, 14 AWG/7C, Shielded, 600V, UL TC-ER, c(UL) CIC/TC FT4

2214070 Related Documents

Datasheet.pdf
