94.72SMA Finder Control Relays

94.72SMA on Powermatic Associates
Finder

Part#:94.72SMA

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

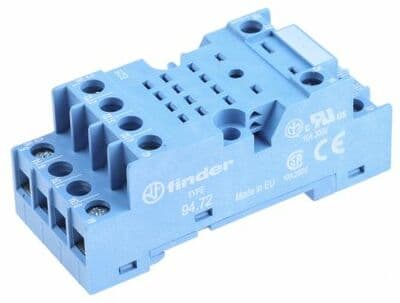

Finder 94.72SMA is a socket designed for screw-clamp connections, featuring a rated current of 10A and an insulation protection rating of IP20. It is suitable for mounting on DIN rails or panels, with a rated insulation voltage (Ui) of 30 mm. This socket operates within the control voltage specifications for AC systems as defined by EN61984 standards. The product is identified by its blue power consumption indicator.

Product Details

  • Primary brand
    Finder
  • Technical compatibility with
    Series 55.32
  • Rated current
    10A
  • Degree of protection
    IP20
  • Compliant with standard(s)
    cURus IMQ CSA EAC CE EN 60664-1 EN 60715 EN 61984
  • Main function
    Socket
  • Mounting mode
    DIN rail Panel
  • Connection type
    Screw-clamp
  • Mounting location
    EN61984
  • Color
    Blue
  • Net Depth (mm)
    30 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
