93.60.0.125 Finder Control Relays

93.60.0.125 on Powermatic Associates
Finder

Part#:93.60.0.125

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

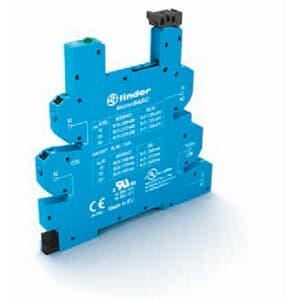

Finder 93.60.0.125 is a socket designed for use with spring/push-in connection types. It supports a rated current of 10A and operates at a control voltage that is compatible with DIN rail installations. The socket is designed to work within a network frequency labeled as MasterBASIC and adheres to the EN61984 standard for output voltage (DC). It offers a degree of protection rated at IP20 and is suitable for use with systems requiring 125Vdc or 125Vac (50Hz/60Hz). The net depth of the socket is specified as 125mm, and its power consumption is indicated by the color white.

Product Details

  • Main function
    Socket
  • Control Voltage (AC)
    125Vac (50Hz/60Hz)
  • Technical compatibility with
    Series 34.51 Series 34.81 Series 39.01
  • Rated current
    10A
  • Mounting mode
    DIN rail
  • Connection type
    Spring / Push-in
  • Compliant with standard(s)
    EN 60664-1 EN 60715 EN 61984
  • Primary brand
    Finder
  • Color
    White
  • Mounting location
    EN61984
  • Sub-range name
    MasterBASIC
  • Control Voltage (DC)
    125Vdc
  • Degree of protection
    IP20

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
