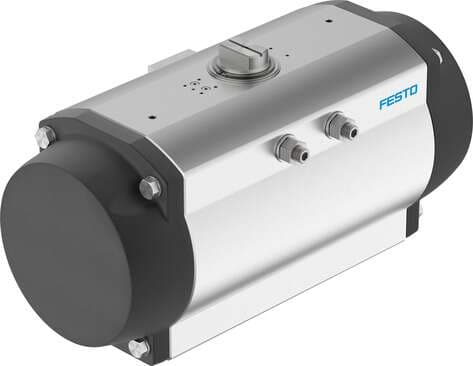

Festo 8102913 semi-rotary drive DFPD-2300-RP-90-RS60-F16-R3-C-VDE2 Size of actuator: 2300, Flange hole pattern: F16, Swivel angle: 90 deg, End-position adjustment range at 0°: -5 - 5 deg, End-position adjustment range at 90°: -5 - 5 deg
Festo

Part#:8102913

Manufacturer:Festo

Alt. Part#:DFPD-2300-RP-90-RS60-F16-R3-C-VDE2

Product Lifecycle:Active

Get a quick Quote!

semi-rotary drive DFPD-2300-RP-90-RS60-F16-R3-C-VDE2 Size of actuator: 2300, Flange hole pattern: F16, Swivel angle: 90 deg, End-position adjustment range at 0°: -5 - 5 deg, End-position adjustment range at 90°: -5 - 5 deg

About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8102913 Festo price in the box on the right side or send a quick quote.

Product Details

  • Operating pressure
    2 bar ... 8 bar
  • Maritime classification
    See certificate
  • Flange hole pattern
    F16
  • Mode of operation
    Single-acting
  • Valve connection conforms to standard
    VDI/VDE 3845 (NAMUR)
  • Type of (ignition) protection for dust
    Ex h IIIC T105°C Db X
  • Information on operating and pilot media
    Dew point min. 10 °C below the ambient and medium temperature Operation with oil lubrication possible (required for further use)
  • Storage temperature
    -20 °C ... 60 °C
  • Spring return torque with 90° swivel angle
    1551 Nm
  • Shaft connection
    T46
  • Cover material
    Die-cast aluminum, coated
  • Cam material
    Steel
  • Nominal operating pressure
    6 bar
  • PFH
    1.01E-7
  • Depth shaft connection
    48 mm
  • Mounting position
    Any
  • Connection for valve positioner and position sensor conforms to standard
    VDI/VDE 3845 size AA 3
  • Type of ignition protection for gas
    Ex h IIC T4 Gb X
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Torque at nominal operating pressure and 90° swivel angle
    885.2 Nm
  • Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°
    84.4 l
  • Pneumatic connection
    G1/4
  • Seals material
    NBR
  • Devices type according to VDMA 66413
    Safety device
  • Swivel angle
    90 deg
  • Type code
    DFPD
  • Symbol
    00991266
  • ATEX category gas
    II 2G
  • Explosive ambient temperature
    -20°C <= Ta <= +80°C
  • Torque at nominal operating pressure and 0° swivel angle
    1523 Nm
  • PFD
    7.8E-4
  • Material of sub-base
    Wrought aluminum alloy, anodized
  • Material of piston
    Die-cast aluminum
  • Material of screws
    High-alloy stainless steel
  • Safety function
    The fundamental safety function is that the control valve moves to the switching position when the compressed air is turned off. It is reset by spring force.
  • End-position adjusting range at 0°
    -5 deg ... 5 deg
  • Standard connection for valve
    ISO 5211
  • Closing direction
    Clockwise closing
  • Certified for safety function to ISO 13849 and IEC 61508 (SIL)
    Product can be used in safety-related parts of control systems up to SIL 2, low demand up to SIL 3 in a redundant architecture
  • Certificate issuing authority
    DNVGL TAP00001CE German Technical Control Board (TÜV) Rheinland 968/V 1106.00/19
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Note about the torque
    The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
  • Note on materials
    RoHS-compliant
  • Housing material
    Wrought aluminum alloy, anodized
  • Material of bearing
    POM
  • Shaft material
    High-alloy stainless steel
  • Size of valve actuator
    2300
  • MTTFd
    1126 years
  • End-position adjusting range at nominal swivel angle
    -5 deg ... 5 deg
  • Design
    Gear rack/pinion
  • Safety integrity level (SIL)
    Up to SIL 2 low demand mode up to SIL 1 high demand mode
  • ATEX category for dust
    II 2D
  • Ambient temperature
    -20 °C ... 80 °C
  • CE marking (see declaration of conformity)
    as per EU explosion protection directive (ATEX)
  • Spring return torque at 0° swivel angle
    913.2 Nm
  • Product weight
    77941 g
  • Material of spring
    Spring steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
