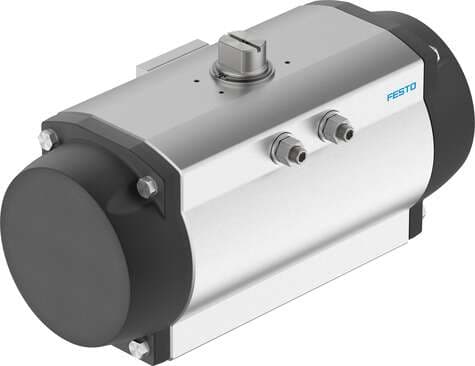

8102882 Festo Quarter Turn Actuators

Product Details

• Devices type according to VDMA 66413
  Safety device
• Flange hole pattern
  F12
• End-position adjusting range at nominal swivel angle
  -5 deg ... 5 deg
• Mounting position
  Any
• Symbol
  00991266
• Certified for safety function to ISO 13849 and IEC 61508 (SIL)
  Product can be used in safety-related parts of control systems up to SIL 2, low demand up to SIL 3 in a redundant architecture
• Explosive ambient temperature
  -20°C <= Ta <= +80°C
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Torque at nominal operating pressure and 0° swivel angle
  279.5 Nm
• Product weight
  24723 g
• Note on materials
  RoHS-compliant
• Housing material
  Wrought aluminum alloy, anodized
• Operating pressure
  2 bar ... 8 bar
• MTTFd
  1126 years
• Swivel angle
  90 deg
• Depth shaft connection
  29 mm
• Mode of operation
  Single-acting
• Connection for valve positioner and position sensor conforms to standard
  VDI/VDE 3845 size AA 2
• Type of ignition protection for gas
  Ex h IIC T4 Gb X
• Certificate issuing authority
  DNVGL TAP00001CE German Technical Control Board (TÜV) Rheinland 968/V 1106.00/19
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Note about the torque
The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
Pneumatic connection
1/4 NPT
Material of sub-base
Wrought aluminum alloy, anodized
Seals material
NBR
Cam material
Steel
Size of valve actuator
700
PFH
1.01E-7
End-position adjusting range at 0°
-5 deg ... 5 deg
Type code
DFPD
Design
Gear rack/pinion
Valve connection conforms to standard
VDI/VDE 3845 (NAMUR)
ATEX category gas
II 2G
Ambient temperature
-20 °C ... 80 °C
Information on operating and pilot media
Dew point min. 10 °C below the ambient and medium temperature Operation with oil lubrication possible (required for further use)
Torque at nominal operating pressure and 90° swivel angle
161.9 Nm
Shaft connection
T27
Material of piston
Die-cast aluminum
Nominal operating pressure
3.5 bar
Maritime classification
See certificate
Standard connection for valve
ISO 5211
Safety integrity level (SIL)
Up to SIL 2 low demand mode up to SIL 1 high demand mode
ATEX category for dust
II 2D
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Storage temperature
-20 °C ... 60 °C
Spring return torque at 0° swivel angle
142.6 Nm
PFD
7.8E-4
Material of spring
Spring steel
Shaft material
High-alloy stainless steel
Safety function
The fundamental safety function is that the control valve moves to the switching position when the compressed air is turned off. It is reset by spring force.
Closing direction
Clockwise closing
Type of (ignition) protection for dust
Ex h IIIC T105°C Db X
CE marking (see declaration of conformity)
as per EU explosion protection directive (ATEX)
Spring return torque with 90° swivel angle
260.1 Nm
Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°
24.5 l
Cover material
Die-cast aluminum, coated
Material of bearing
POM
Material of screws
High-alloy stainless steel
