8102868 Festo Quarter Turn Actuators

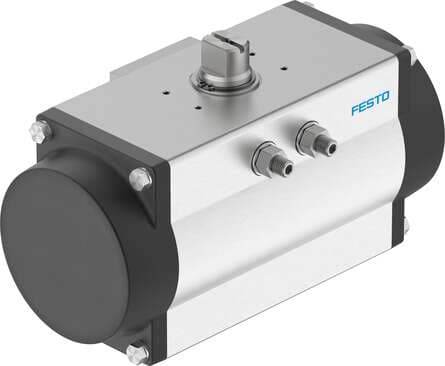

Festo 8102868 semi-rotary drive DFPD-480-RP-90-RS60-F12-R3-C-VDE2 Size of actuator: 480, Flange hole pattern: F12, Swivel angle: 90 deg, End-position adjustment range at 0°: -5 - 5 deg, End-position adjustment range at 90°: -5 - 5 deg
Festo

Part#:8102868

Manufacturer:Festo

Alt. Part#:DFPD-480-RP-90-RS60-F12-R3-C-VDE2

Product Lifecycle:Active

Get a quick Quote!

semi-rotary drive DFPD-480-RP-90-RS60-F12-R3-C-VDE2 Size of actuator: 480, Flange hole pattern: F12, Swivel angle: 90 deg, End-position adjustment range at 0°: -5 - 5 deg, End-position adjustment range at 90°: -5 - 5 deg

About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8102868 Festo price in the box on the right side or send a quick quote.

Product Details

  • Size of valve actuator
    480
  • Swivel angle
    90 deg
  • Depth shaft connection
    29 mm
  • Devices type according to VDMA 66413
    Safety device
  • PFH
    1.01E-7
  • End-position adjusting range at 0°
    -5 deg ... 5 deg
  • Mounting position
    Any
  • Design
    Gear rack/pinion
  • ATEX category gas
    II 2G
  • Ambient temperature
    -20 °C ... 80 °C
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Torque at nominal operating pressure and 0° swivel angle
    347.1 Nm
  • PFD
    7.8E-4
  • Pneumatic connection
    G1/4
  • Housing material
    Wrought aluminum alloy, anodized
  • Cam material
    Steel
  • MTTFd
    1126 years
  • Type code
    DFPD
  • Symbol
    00991266
  • Safety integrity level (SIL)
    Up to SIL 2 low demand mode up to SIL 1 high demand mode
  • Certificate issuing authority
    DNVGL TAP00001CE German Technical Control Board (TÜV) Rheinland 968/V 1106.00/19
  • Storage temperature
    -20 °C ... 60 °C
  • Spring return torque with 90° swivel angle
    336.1 Nm
  • Seals material
    NBR
  • Shaft material
    High-alloy stainless steel
  • Nominal operating pressure
    6 bar
  • Safety function
    The fundamental safety function is that the control valve moves to the switching position when the compressed air is turned off. It is reset by spring force.
  • Flange hole pattern
    F12
  • Mode of operation
    Single-acting
  • Closing direction
    Clockwise closing
  • Certified for safety function to ISO 13849 and IEC 61508 (SIL)
    Product can be used in safety-related parts of control systems up to SIL 2, low demand up to SIL 3 in a redundant architecture
  • ATEX category for dust
    II 2D
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • CE marking (see declaration of conformity)
    as per EU explosion protection directive (ATEX)
  • Torque at nominal operating pressure and 90° swivel angle
    181 Nm
  • Shaft connection
    T27
  • Material of sub-base
    Wrought aluminum alloy, anodized
  • Material of spring
    Spring steel
  • Operating pressure
    2 bar ... 8 bar
  • Maritime classification
    See certificate
  • End-position adjusting range at nominal swivel angle
    -5 deg ... 5 deg
  • Standard connection for valve
    ISO 5211
  • Valve connection conforms to standard
    VDI/VDE 3845 (NAMUR)
  • Type of ignition protection for gas
    Ex h IIC T4 Gb X
  • Type of (ignition) protection for dust
    Ex h IIIC T105°C Db X
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Note about the torque
    The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
  • Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°
    17.2 l
  • Note on materials
    RoHS-compliant
  • Material of piston
    Die-cast aluminum
  • Connection for valve positioner and position sensor conforms to standard
    VDI/VDE 3845 size AA 2
  • Explosive ambient temperature
    -20°C <= Ta <= +80°C
  • Information on operating and pilot media
    Dew point min. 10 °C below the ambient and medium temperature Operation with oil lubrication possible (required for further use)
  • Spring return torque at 0° swivel angle
    170 Nm
  • Product weight
    18504 g
  • Cover material
    Die-cast aluminum, coated
  • Material of bearing
    POM
  • Material of screws
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
