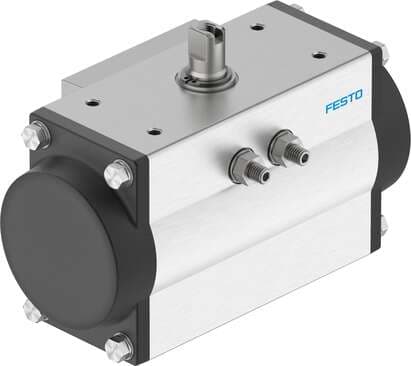

8102799 Festo Quarter Turn Actuators

Name: 8102799
Brand: Festo

Part#:8102799

Manufacturer:Festo

Alt. Part#:DFPD-N-20-RP-90-RS35-F05-R3-C

Product Lifecycle:Active

Get a quick Quote!

semi-rotary drive DFPD-N-20-RP-90-RS35-F05-R3-C Size of actuator: 20, Flange hole pattern: F05, Swivel angle: 90 deg, End-position adjustment range at 0°: -5 - 5 deg, End-position adjustment range at 90°: -5 - 5 deg

About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8102799 Festo price in the box on the right side or send a quick quote.

Product Details

Nominal operating pressure
3.5 bar
Flange hole pattern
F05
End-position adjusting range at 0°
-5 deg ... 5 deg
Mounting position
Any
Type of (ignition) protection for dust
Ex h IIIC T105°C Db X
Information on operating and pilot media
Dew point min. 10 °C below the ambient and medium temperature Operation with oil lubrication possible (required for further use)
Spring return torque with 90° swivel angle
10.7 Nm
Note about the torque
The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
Note on materials
RoHS-compliant
Cam material
Cast stainless steel
Material of screws
High-alloy stainless steel
Size of valve actuator
20
Maritime classification
See certificate
Standard connection for valve
ISO 5211
Design
Gear rack/pinion
Connection for valve positioner and position sensor conforms to standard
VDI/VDE 3845 size AA 1
Certified for safety function to ISO 13849 and IEC 61508 (SIL)
Product can be used in safety-related parts of control systems up to SIL 2, low demand up to SIL 3 in a redundant architecture
Explosive ambient temperature
-20°C <= Ta <= +80°C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)

Torque at nominal operating pressure and 90° swivel angle

4.5 Nm

Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°

0.8 l

Material of spring

Spring steel

Shaft material

High-alloy stainless steel

Devices type according to VDMA 66413

Safety device

MTTFd

1126 years

CE marking (see declaration of conformity)

as per EU explosion protection directive (ATEX)

Torque at nominal operating pressure and 0° swivel angle

8.6 Nm

PFD

7.8E-4

Pneumatic connection

1/8 NPT

Seals material

NBR

Material of bearing

POM

Operating pressure

2 bar ... 8 bar

PFH

1.01E-7

Swivel angle

90 deg

Depth shaft connection

12 mm

Mode of operation

Single-acting

Symbol

00991266

Valve connection conforms to standard

VDI/VDE 3845 (NAMUR)

ATEX category for dust

II 2D

Ambient temperature

-20 °C ... 80 °C

Storage temperature

-20 °C ... 60 °C

Shaft connection

T11

Cover material

Die-cast aluminum, coated

Material of piston

Die-cast aluminum

Safety function

The fundamental safety function is that the control valve moves to the switching position when the compressed air is turned off. It is reset by spring force.

End-position adjusting range at nominal swivel angle

-5 deg ... 5 deg

Type code

DFPD

Closing direction

Clockwise closing

Safety integrity level (SIL)

Up to SIL 2 low demand mode up to SIL 1 high demand mode

ATEX category gas

II 2G

Type of ignition protection for gas

Ex h IIC T4 Gb X

Certificate issuing authority

DNVGL TAP00001CE German Technical Control Board (TÜV) Rheinland 968/V 1106.00/19

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Spring return torque at 0° swivel angle

5.4 Nm

Product weight

1383 g

Material of sub-base

Wrought aluminum alloy, anodized

Housing material

Wrought aluminum alloy, anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
