8096672 Festo Ball Valves

Name: 8096672
Brand: Festo

Part#:8096672

Manufacturer:Festo

Alt. Part#:VZBE-3-T-63-T-2-F0710-M-V15V16

Product Lifecycle:Active

Get a quick Quote!

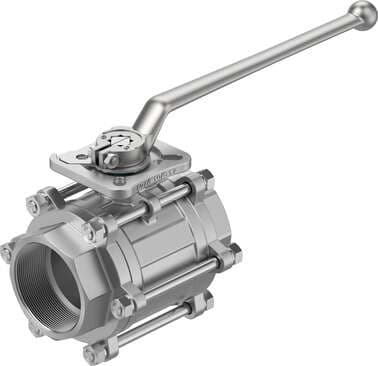

ball valve VZBE-3-T-63-T-2-F0710-M-V15V16 Design structure: 2-way ball valve, Type of actuation: mechanical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation

About the manufacturer: Festo is one of the manufacturers that offers Ball Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8096672 Festo price in the box on the right side or send a quick quote.

Product Details

Actuation type
Mechanical
Type of mounting
Line installation
Nominal width DN
80
Flow rate Kv
264.5 m³/h
Seals material
FPM PTFE
Material number for ball
1.4401
Corrosion resistance class (CRC)
4 - Particularly high corrosion stress
Type code
VZBE
Design
2-way ball valve
Mounting position
Any
Flow direction
Reversible
Nominal pressure of fitting PN
63
Material number of housing
1.4408
Material number for shaft
1.4401
Product weight
8600 g
Sealing principle
Soft
Switching position indication
Slot direction = flow direction
Symbol
00991458
Temperature of medium
-20 °C ... 200 °C
Housing material
Cast stainless steel

Certification

CRN

Seat seal material

PTFE, modified

Flange hole pattern

F0710

Inside diameter

76 mm

Breakaway torque at differential pressure, nominal pressure, fitting PN

70 Nm

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Shaft material

High-alloy stainless steel

CE marking (see declaration of conformity)

as per EU pressure equipment directive

Fitting connection

3 NPT

Valve function

2/2

Based on norm

ASME B1.20.1 ISO 5211

Medium

Vapor Neutral liquids

Ball material

High-alloy stainless steel

Explosion prevention and protection

Zone 1 (ATEX) Zone 22 (ATEX)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
