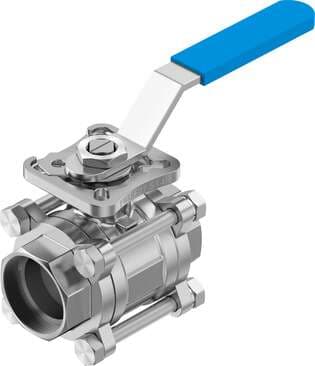

8089061 Festo Ball Valves
Part#:8089061
Alt. Part#:VZBE-11/2-WA-63-T-2-F0507-M-V15V15
Manufacturer:Festo
Category:Ball Valves
Product Lifecycle:Active
Product description
ball valve VZBE-11/2-WA-63-T-2-F0507-M-V15V15 Design structure: 2-way ball valve with hand lever, Type of actuation: mechanical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation
Product Details
- Seat seal material PTFE, modified
- Mounting position Any
- Inside diameter 40 mm
- Breakaway torque at differential pressure, nominal pressure, fitting PN 30 Nm
- Nominal pressure of fitting PN 63
- Flow rate Kv 60.9 m³/h
- Material number of housing 1.4408/CF8M
- CE marking (see declaration of conformity) as per EU pressure equipment directive
- Actuation type Mechanical
- Type of mounting Line installation
- Flow direction Reversible
- Symbol 00991458
- Housing material Cast stainless steel
- Material number for ball 1.4408/CF8M
- Certification CRN
- Type code VZBE
- Fitting connection Weld-on end according to ASME B16.11
- Based on norm ASME B16.11 ISO 5211
- Seals material FPM PTFE
- Material number for shaft 1.4401
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Design 2-way ball valve with hand lever
- Flange hole pattern F05 F07
- Nominal width DN 40
- Medium Vapor Neutral liquids
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Ball material Cast stainless steel
- Product weight 2600 g
- Sealing principle Soft
- Switching position indication Slot direction = flow direction
- Valve function 2/2
- Temperature of medium -20 °C ... 200 °C
- Shaft material High-alloy stainless steel
- Corrosion resistance class (CRC) 4 - Particularly high corrosion stress
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
