8089042 Festo Ball Valves
Part#:8089042
Alt. Part#:VZBE-1-WA-63-T-2-F0405-V15V15
Manufacturer:Festo
Category:Ball Valves
Product Lifecycle:Active
Product description

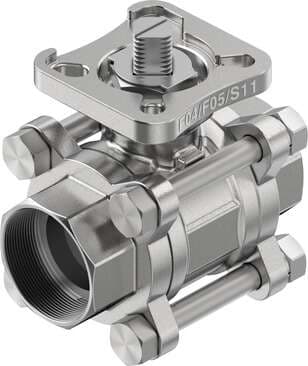

ball valve VZBE-1-WA-63-T-2-F0405-V15V15 Design structure: 2-way ball valve, Type of actuation: mechanical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation
Product Details
- Sealing principle Soft
- Mounting position Any
- Based on norm ASME B16.11 ISO 5211
- Material number of housing 1.4408/CF8M
- Product weight 1000 g
- Corrosion resistance class (CRC) 4 - Particularly high corrosion stress
- Flow rate Kv 24.8 m³/h
- Type code VZBE
- Actuation type Mechanical
- Valve function 2/2
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Seals material FPM PTFE
- Certification CRN
- Seat seal material PTFE, modified
- Type of mounting Line installation
- Nominal width DN 25
- Breakaway torque at differential pressure, nominal pressure, fitting PN 15 Nm
- Ball material Cast stainless steel
- Shaft material High-alloy stainless steel
- Design 2-way ball valve
- Fitting connection Weld-on end according to ASME B16.11
- Inside diameter 25 mm
- Flow direction Reversible
- Medium Vapor Neutral liquids
- Temperature of medium -20 °C ... 200 °C
- Material number for ball 1.4408/CF8M
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Switching position indication Slot direction = flow direction
- Flange hole pattern F04 F05
- Nominal pressure of fitting PN 63
- Symbol 00991458
- Housing material Cast stainless steel
- Material number for shaft 1.4401
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
