8084497 Festo Axial Kits

8084497 on Powermatic Associates
Festo

Part#:8084497

Alt. Part#:EAMM-A-T42-67A

Manufacturer:Festo

Category:Axial Kits

Product Lifecycle:Active

Product description

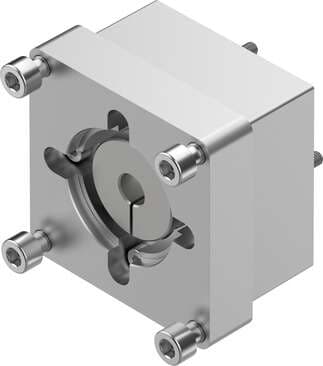

axial kit EAMM-A-T42-67A Nominal length: 43 mm, Assembly position: Any, Max. speed: 8000 1/min, Storage temperature: -25 - 60 °C, Relative air humidity: 0 - 95 %

Product Details

  • Max. rotational speed
    8000 1/min
  • Mass moment of inertia
    3.2 kgmm²
  • Interface code, motor in
    67A
  • Nominal length
    43 mm
  • Storage temperature
    -25 °C ... 60 °C
  • Transferable torque
    8.5 Nm
  • Mounting position
    Any
  • Degree of protection
    IP40
  • Note on materials
    RoHS-compliant
  • Relative air humidity
    0 - 95 %
  • Product weight
    377 g
  • Type code
    EAMM-A
  • Ambient temperature
    -10 °C ... 60 °C
  • Interface code, actuator
    T42

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8084497 Related Documents

8084497 DataSheet.pdf
