8075654 Festo Diffuse Sensors

Name: 8075654
Brand: Festo

Part#:8075654

Manufacturer:Festo

Category:Diffuse Sensors

Alt. Part#:SOOD-BS-R-PN-50

Product Lifecycle:Active

Get a quick Quote!

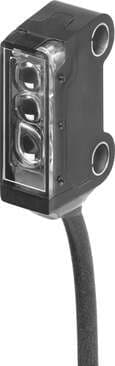

diffuse sensor SOOD-BS-R-PN-50 Design: Block design, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive)

About the manufacturer: Festo is one of the manufacturers that offers Diffuse Sensors that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8075654 Festo price in the box on the right side or send a quick quote.

Product Details

Certificate issuing authority
UL E232949
Electrical connection for input 1, connection pattern
00991155
Type code
SOOD
Electrical connection 1, connection technology
M8x1 A-coded as per EN 61076-2-104
Symbol
00995959
Measuring principle
Optoelectronic
Type of light
Red LED
Switching element function
PNP, bright-switching NPN, dark-switching
Voltage drop
0 V ... 1.5 V
Reverse polarity protection
for all electrical connections
Material of cable sheath
TPE-U(PUR)
Product weight
10 g
Surge resistance
1 kV
Detection method
Reflection light sensor with HGA
Electrical connection 1, number of pins/wires
3
Max. light spot
3.5 mm for scan width of 50 mm
Ambient temperature
-25 °C ... 60 °C
Max. switching frequency
800 Hz
Short-circuit protection
Pulsed
Material of pin contacts
Brass, gold-plated

Cable characteristic

Standard

Degree of protection

IP65 IP67

Max. black-white difference

15 %

Certification

RCM compliance mark c UL us - Recognized (OL)

Working range

3 mm ... 50 mm

Max. output current

50 mA

Cable length

0.15 m

Mounting position

Any

Housing material

ABS TPE-U(PU)

Contamination level

Electrical connection 1, type of mounting

Screw-type lock

Electrical connection 1, connection type

Cable with plug

Design

Block design

CE marking (see declaration of conformity)

As per EU EMC directive As per EU RoHS directive

Reference material

Standard white 90%, 100x100 mm

DC operating voltage range

10 V ... 30 V

Tightening torque

0.5 Nm

Switching status indication

LED yellow

Corrosion resistance class (CRC)

1 - Low corrosion stress

Conforms to standard

EN 60947-5-2

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Minimum object diameter

3.5 mm

Switching output

Push-pull

Hysteresis

0.5 mm

Idle current

10 mA

Residual ripple

10 %

Type of mounting

With through-hole

Ready status indication

LED green

Insulation voltage

500 V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
