8066448 Festo Quarter Turn Actuators

Name: 8066448
Brand: Festo

Part#:8066448

Manufacturer:Festo

Alt. Part#:DFPD-N-160-RP-90-RS30-F0710

Product Lifecycle:Active

Get a quick Quote!

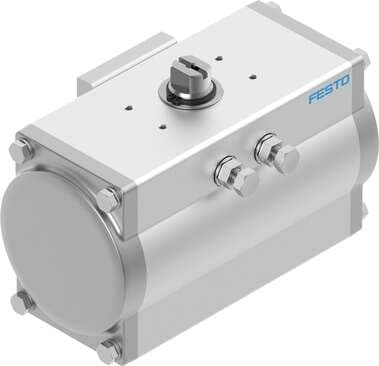

semi-rotary drive DFPD-N-160-RP-90-RS30-F0710 single-acting, rack and pinion design, connection pattern to NAMUR VDI/VDE 3845 for mounting solenoid valves, position sensors and positioners, standard connection to process valve fitting ISO 5211, NPT contro

About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8066448 Festo price in the box on the right side or send a quick quote.

Product Details

Nominal operating pressure
3 bar
MTTFd
1126 years
End-position adjusting range at 0°
-5 deg ... 5 deg
Mounting position
Any
Closing direction
Clockwise closing
Safety integrity level (SIL)
Up to SIL 2 low demand mode up to SIL 1 high demand mode
Certificate issuing authority
DNVGL TAP00001CE German Technical Control Board (TÜV) Rheinland 968/V 1106.00/19
Information on operating and pilot media
Dew point min. 10 °C below the ambient and medium temperature Operation with oil lubrication possible (required for further use)
Note about the torque
The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°
5.9 l
Pneumatic connection
1/4 NPT
Material of bearing
POM
Size of valve actuator
160
Flange hole pattern
F0710
Depth shaft connection
24 mm
Valve connection conforms to standard
VDI/VDE 3845 (NAMUR)
Connection for valve positioner and position sensor conforms to standard
VDI/VDE 3845 size AA 1
Type of (ignition) protection for dust
Ex h IIIC T105°C Db X
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Storage temperature
-20 °C ... 60 °C

Spring return torque at 0° swivel angle

28.9 Nm

PFD

7.8E-4

Material of sub-base

Wrought aluminum alloy, anodized

Cover material

Die-cast aluminum, coated

Material of screws

High-alloy stainless steel

Swivel angle

90 deg

Standard connection for valve

ISO 5211

Design

Gear rack/pinion

ATEX category for dust

II 2D

Explosive ambient temperature

-20°C <= Ta <= +80°C

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Product weight

6767 g

Shaft connection

T22

Housing material

Wrought aluminum alloy, anodized

Cam material

Cast stainless steel

Devices type according to VDMA 66413

Safety device

PFH

1.01E-7

Maritime classification

See certificate

Mode of operation

Single-acting

Symbol

00991266

Type of ignition protection for gas

Ex h IIC T4 Gb X

Ambient temperature

-20 °C ... 80 °C

Explosion prevention and protection

Zone 1 (ATEX) Zone 22 (ATEX)

Torque at nominal operating pressure and 90° swivel angle

30.7 Nm

Spring return torque with 90° swivel angle

57.1 Nm

Seals material

NBR

Material of piston

Die-cast aluminum

Shaft material

Steel, nickel-plated

Operating pressure

2 bar ... 8 bar

Safety function

The fundamental safety function is that the control valve moves to the switching position when the compressed air is turned off. It is reset by spring force.

End-position adjusting range at nominal swivel angle

-5 deg ... 5 deg

Type code

DFPD

ATEX category gas

II 2G

Certified for safety function to ISO 13849 and IEC 61508 (SIL)

Product can be used in safety-related parts of control systems up to SIL 2, low demand up to SIL 3 in a redundant architecture

CE marking (see declaration of conformity)

as per EU explosion protection directive (ATEX)

Torque at nominal operating pressure and 0° swivel angle

59 Nm

Note on materials

RoHS-compliant

Material of spring

Spring steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
