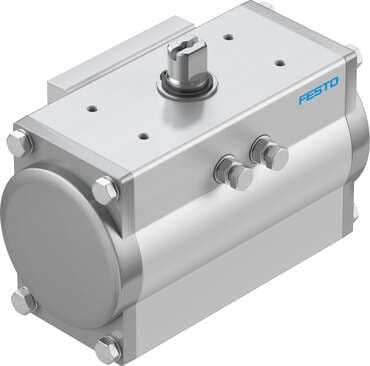

8066410 Festo Quarter Turn Actuators

Product Details

• Safety function
  The fundamental safety function is the execution of a complete working stroke (opening and closing of the process valve) within a defined time.
• Swivel angle
  90 deg
• Depth shaft connection
  16 mm
• Standard connection for valve
  ISO 5211
• Closing direction
  Clockwise closing
• Type of ignition protection for gas
  Ex h IIC T4 Gb X
• Ambient temperature
  -20 °C ... 80 °C
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• CE marking (see declaration of conformity)
  as per EU explosion protection directive (ATEX)
• PFD
  0.00142
• Shaft connection
  T14
• Seals material
  NBR
• Operating pressure
  2 bar ... 8 bar
• Devices type according to VDMA 66413
  Safety device
• End-position adjusting range at 0°
  -5 deg ... 5 deg
• Mounting position
  Any
• Connection for valve positioner and position sensor conforms to standard
  VDI/VDE 3845 size AA 1
• ATEX category for dust
  II 2D
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Torque at nominal operating pressure and 90° swivel angle
  38.3 Nm
Product weight
1882 g
Cam material
Cast stainless steel
Material of screws
High-alloy stainless steel
Size of valve actuator
40
MTTFd
1126 years
End-position adjusting range at nominal swivel angle
-5 deg ... 5 deg
Design
Gear rack/pinion
Symbol
00991265
Certified for safety function to ISO 13849 and IEC 61508 (SIL)
Product can be used in safety-related parts of control systems up to SIL 2, low demand up to SIL 3 in a redundant architecture
Certificate issuing authority
DNVGL TAP00001CE German Technical Control Board (TÜV) Rheinland 968/V 1106.00/19
Information on operating and pilot media
Dew point min. 10 °C below the ambient and medium temperature Operation with oil lubrication possible (required for further use)
Storage temperature
-20 °C ... 60 °C
Material of sub-base
Wrought aluminum alloy, anodized
Material of piston
Die-cast aluminum
PFH
1.01E-7
Flange hole pattern
F0507
Mode of operation
Double-acting
Valve connection conforms to standard
VDI/VDE 3845 (NAMUR)
ATEX category gas
II 2G
Explosive ambient temperature
-20°C <= Ta <= +80°C
Torque at nominal operating pressure and 0° swivel angle
38.3 Nm
Note about the torque
The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
Pneumatic connection
1/8 NPT
Cover material
Die-cast aluminum, coated
Shaft material
High-alloy stainless steel
Nominal operating pressure
5.5 bar
Maritime classification
See certificate
Type code
DFPD
Safety integrity level (SIL)
Up to SIL 2 low demand mode up to SIL 1 high demand mode
Type of (ignition) protection for dust
Ex h IIIC T105°C Db X
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°
3.4 l
Note on materials
RoHS-compliant
Housing material
Wrought aluminum alloy, anodized
Material of bearing
POM

Related documents 8066410 Specs
