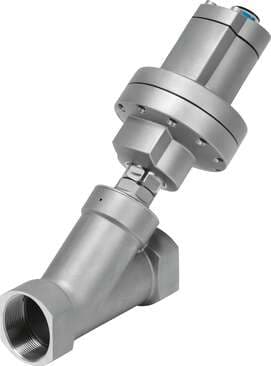

8060517 Festo Angle Seat Valves

Product Details

• Certificate issuing authority
  CRN0C20829.5C German Technical Control Board (TÜV) 968/V 1039.00/18
• Operating pressure
  5 bar ... 7 bar
• Type code
  VZXA
• Certification
  CRN
• Medium pressure
  0 bar ... 16 bar
• Type of mounting
  Line installation
• Reset method
  Mechanical spring
• Pneumatic connection
  Internal thread G1/8
• Control of the medium
  On/off mode
• Ambient temperature
  0 °C ... 60 °C
• PFH
  1.36E-7
• Use in exterior area
  wettergeschützte Einsatzorte Klasse C1 in Anlehnung an IEC 60654-1
• Mounting position
  Any
• Valve function
  2/2
• Type of control
  Externally controlled
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Note on materials
  Contains paint-wetting impairment substances RoHS-compliant
• Product weight
  7275 g
• Stroke
  26 mm
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
Safety integrity level (SIL)
SIL 2
Actuation type
Pneumatic
Flow direction
Above valve seat, for gaseous media
Medium
Vapor Filtered compressed air, 200 µm filter mesh
Flow rate Kv
47.4 m³/h
Material number, fitting housing
1.4409
Seat seal material
PTFE
Control function
Closed by reduced spring force, NC
Cover material
Cast stainless steel
PFD
5.95E-4
Max. viscosity
600 mm²/s
Seals material
NBR
Drive housing material
Cast stainless steel
Degree of protection
IP65 IP67
Design
Poppet valve with diaphragm actuator
Cable connection
Threaded sleeve G1 1/2 as per DIN ISO 228
Symbol
00995582
Temperature of medium
-10 °C ... 180 °C
Spindle seal material
PTFE
Actuator size
90 mm
Position sensing
With mechanical indicator
Storage temperature
-10 °C ... 60 °C
Valve housing material
Cast stainless steel
CE marking (see declaration of conformity)
as per EU machinery directive
Material number, drive housing
1.4408
Piston rod material
High-alloy stainless steel
