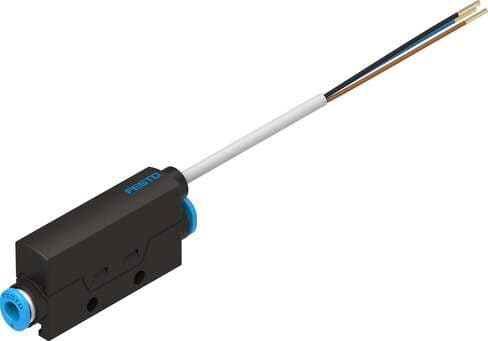

8058515 Festo Flow Sensors

Product Details

• Type code
  SFTE
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Overload protection
  Available
• Type of mounting
  Line installation With accessories
• Electrical connection 1, number of pins/wires
  3
• Idle current
  ≤ 17 mA
• Temperature of medium
  0 °C ... 50 °C
• Electrical connection 1, connection technology
  Open end
• Note on materials
  RoHS-compliant
• Method of measurement
  Heat loss
• KC characters
  KC EMC
• Symbol
  00991853
• Rise time
  3 ms
• Ambient temperature
  0 °C ... 50 °C
• Analog output
  1 - 5 V
• Flow direction
  Unidirectional
• Housing material
  PA-reinforced
• Material of cable sheath
  TPE-U(PUR)
• Repetition accuracy in ± %FS
  1 %FS
• Operating pressure
  -0.9 bar ... 10 bar
Product weight
40 g
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Reverse polarity protection
for all electrical connections
Short-circuit protection
yes
Degree of protection
IP40
Electrical connection 1, connection type
Cable
Pneumatic connection
For plug connection outside diameter 4 mm
Min. load resistance of voltage output
20 kOhm
Cable length
2.5 m
Flow rate detection range, end value
10 l/min
Measured variable
Mass flow rate Volumetric flow rate
Certification
RCM compliance mark
Measuring principle
Thermal
Mounting position
Any
Operating medium
Compressed air as per ISO 8573-1:2010 [6:4:4] Nitrogen
Nominal temperature
23 °C
Flow rate detection range, start value
0 l/min
DC operating voltage range
22 V ... 26 V
