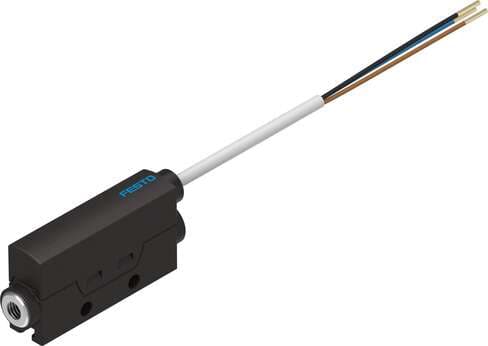

8058514 Festo Flow Sensors

Product Details

• Flow direction
  Unidirectional
• Mounting position
  Any
• Symbol
  00991853
• Pneumatic connection
  Internal thread M5
• Rise time
  3 ms
• Temperature of medium
  0 °C ... 50 °C
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Method of measurement
  Heat loss
• Type code
  SFTE
• Degree of protection
  IP40
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  Line installation With accessories
• Min. load resistance of voltage output
  20 kOhm
• Ambient temperature
  0 °C ... 50 °C
• Electrical connection 1, connection technology
  Open end
• Note on materials
  RoHS-compliant
• Short-circuit protection
  yes
• Overload protection
  Available
• Repetition accuracy in ± %FS
  1 %FS
• Electrical connection 1, number of pins/wires
  3
Operating pressure
-0.9 bar ... 10 bar
Certification
RCM compliance mark
Housing material
PA-reinforced
Electrical connection 1, connection type
Cable
Nominal temperature
23 °C
Idle current
≤ 17 mA
Flow rate detection range, start value
0 l/min
Flow rate detection range, end value
10 l/min
Measured variable
Mass flow rate Volumetric flow rate
Analog output
1 - 5 V
Measuring principle
Thermal
Reverse polarity protection
for all electrical connections
KC characters
KC EMC
Material of cable sheath
TPE-U(PUR)
Operating medium
Compressed air as per ISO 8573-1:2010 [6:4:4] Nitrogen
Cable length
2.5 m
DC operating voltage range
22 V ... 26 V
Product weight
37 g
