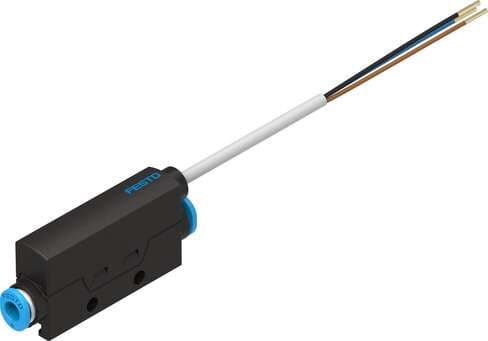

8058511 Festo Flow Sensors

Product Details

• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Note on materials
  RoHS-compliant
• Short-circuit protection
  yes
• Degree of protection
  IP40
• Type of mounting
  Line installation With accessories
• Flow rate detection range, start value
  0 l/min
• Idle current
  ≤ 17 mA
• Flow rate detection range, end value
  1 l/min
• Measuring principle
  Thermal
• Mounting position
  Any
• Symbol
  00991853
• Nominal temperature
  23 °C
• Cable length
  2.5 m
• Temperature of medium
  0 °C ... 50 °C
• Certification
  RCM compliance mark
• Type code
  SFTE
• KC characters
  KC EMC
• Material of cable sheath
  TPE-U(PUR)
• Repetition accuracy in ± %FS
  1 %FS
• Operating pressure
  -0.9 bar ... 10 bar
Product weight
40 g
Measured variable
Mass flow rate Volumetric flow rate
Analog output
1 - 5 V
Reverse polarity protection
for all electrical connections
Method of measurement
Heat loss
Overload protection
Available
Electrical connection 1, connection type
Cable
Pneumatic connection
For plug connection outside diameter 4 mm
Electrical connection 1, number of pins/wires
3
DC operating voltage range
22 V ... 26 V
Electrical connection 1, connection technology
Open end
Flow direction
Unidirectional
Housing material
PA-reinforced
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Operating medium
Compressed air as per ISO 8573-1:2010 [6:4:4] Nitrogen
Min. load resistance of voltage output
20 kOhm
Rise time
3 ms
Ambient temperature
0 °C ... 50 °C
