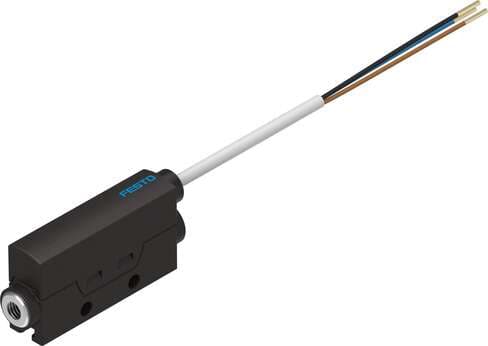

8058510 Festo Flow Sensors

Product Details

• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Note on materials
  RoHS-compliant
• Flow direction
  Unidirectional
• Mounting position
  Any
• Overload protection
  Available
• Operating medium
  Compressed air as per ISO 8573-1:2010 [6:4:4] Nitrogen
• Repetition accuracy in ± %FS
  1 %FS
• Cable length
  2.5 m
• Product weight
  37 g
• Type code
  SFTE
• Method of measurement
  Heat loss
• KC characters
  KC EMC
• Symbol
  00991853
• Pneumatic connection
  Internal thread M5
• Rise time
  3 ms
• Min. load resistance of voltage output
  20 kOhm
• DC operating voltage range
  22 V ... 26 V
• Flow rate detection range, end value
  1 l/min
• Analog output
  1 - 5 V
• Reverse polarity protection
  for all electrical connections
Short-circuit protection
yes
Degree of protection
IP40
Nominal temperature
23 °C
Idle current
≤ 17 mA
Measured variable
Mass flow rate Volumetric flow rate
Certification
RCM compliance mark
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Electrical connection 1, connection type
Cable
Electrical connection 1, number of pins/wires
3
Ambient temperature
0 °C ... 50 °C
Electrical connection 1, connection technology
Open end
Measuring principle
Thermal
Housing material
PA-reinforced
Material of cable sheath
TPE-U(PUR)
Type of mounting
Line installation With accessories
Flow rate detection range, start value
0 l/min
Operating pressure
-0.9 bar ... 10 bar
Temperature of medium
0 °C ... 50 °C
