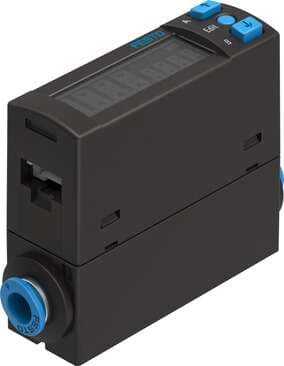

8058477 Festo Flow Sensors

Product Details

• Protection against tampering
  IO-Link® PIN code
• Electrical connection 1, connection technology
  Connection diagram L1J
• Electrical connection 1, number of pins/wires
  4
• Measured variable
  Mass flow rate Volumetric flow rate
• Flow measuring range end value
  200 l/min
• Repetition accuracy margin in ± %FS
  0.8 %FS
• Pressure influence of margin in ±%FS/bar
  1 %FS/b.
• Flow characteristic curve, start value
  0 l/min
• Short-circuit protection
  yes
• Overload protection
  Available
• IO-Link®, process data width IN
  3 Byte
• Type of mounting
  With accessories
• Housing material
  PA-reinforced
• Degree of protection
  IP40
• Type code
  SFAH
• Electrical connection 1, connection type
  Plug
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Method of measurement
  Heat transfer
• Operating medium
  Argon Nitrogen
• Accuracy of flow rate
  ± (2% o.m.v. + 1% FS)
Switching output
2 x PNP or 2 x NPN switchable
Max. output current
100 mA
Protocol
IO-Link®
IO-Link®, function classes
Binary data channel (BDC) Teach channel
IO-Link®, process data content IN
1 bit BDC (volume monitoring) 2 bit BDC (flow monitoring)
DC operating voltage range
22 V ... 26 V
Pneumatic connection
For pneumatic tubing outside diameter 8 mm
Materials in contact with the media
Wrought aluminum alloy, anodized High-alloy stainless steel
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pneumatic connection, outlet direction
Straight
KC characters
KC EMC
Certificate issuing authority
UL E322346
Measuring principle
Thermal
Nominal temperature
23 °C
Switching function
Window comparator Auto difference monitoring
Min. load resistance of voltage output
20 kOhm
IO-Link®, communication mode
COM2 (38,4 kBd)
Reverse polarity protection
for all electrical connections
Product weight
60 g
Pressure drop
56 mbar
Certification
RCM compliance mark c UL us - Listed (OL)
Note on materials
RoHS-compliant
Flow measuring range start value
4 l/min
Temperature of medium
0 °C ... 50 °C
Zero point repetition accuracy in ± %FS
0.2 %FS
Temperature co-efficient margin in ± %FS/K
typ. 0.15% FS/K
Switching element function
N/C contact/N/O contact switchable
Flow characteristic curve, end value
200 l/min
IO-Link®, profile
Smart sensor profile
IO-Link®, service data contents IN
32 bit volume/mass measurement
IO-Link®, data memory required
< 500 byte
Mounting position
Any
Display type
Illuminated LCD, multi-color
Setting options
IO-Link® Via display and pushbuttons
Electrical connection for input 1, connection pattern
00995428
Symbol
00995795
Idle current
≤ 25 mA
Flow direction
Unidirectional
Operating pressure
-0.9 bar ... 10 bar
Ambient temperature
0 °C ... 50 °C
Analog output
0 - 10 V 1 - 5 V
Max. load resistance of current output
500 Ohm
IO-Link®, protocol version
Device V 1.1
IO-Link®, port class
A
IO-Link®, SIO mode support
Yes
IO-Link®, minimum cycle time
4 ms
Displayable unit(s)
g scft/min
Protection class
III
