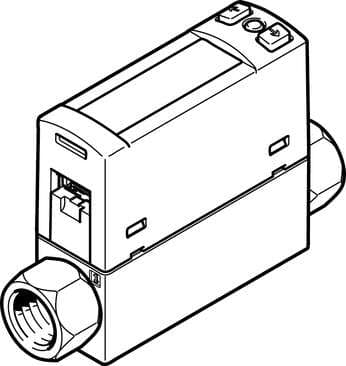

8058476 Festo Flow Sensors

Product Details

• Pneumatic connection, outlet direction
  Straight
• Idle current
  ≤ 25 mA
• Note on materials
  RoHS-compliant
• Method of measurement
  Heat transfer
• Temperature of medium
  0 °C ... 50 °C
• Zero point repetition accuracy in ± %FS
  0.2 %FS
• Protection against tampering
  IO-Link® PIN code
• Electrical connection 1, connection technology
  M8x1 A-coded as per EN 61076-2-104
• Type code
  SFAH
• Electrical connection 1, connection type
  Plug
• Electrical connection 1, number of pins/wires
  4
• Measured variable
  Mass flow rate Volumetric flow rate
• Operating pressure
  -0.9 bar ... 10 bar
• Nominal temperature
  23 °C
• Pressure influence of margin in ±%FS/bar
  1 %FS/b.
• Analog output
  0 - 10 V 1 - 5 V
• Short-circuit protection
  yes
• IO-Link®, function classes
  Binary data channel (BDC) Teach channel
• IO-Link®, process data content IN
  1 bit BDC (volume monitoring) 2 bit BDC (flow monitoring)
• Reverse polarity protection
  for all electrical connections
Display type
Illuminated LCD, multi-color
Protection class
III
Symbol
00995794
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Flow measuring range start value
2 l/min
Ambient temperature
0 °C ... 50 °C
Temperature co-efficient margin in ± %FS/K
typ. 0.15% FS/K
Max. output current
100 mA
Flow characteristic curve, end value
100 l/min
IO-Link®, profile
Smart sensor profile
IO-Link®, process data width IN
3 Byte
DC operating voltage range
22 V ... 26 V
Product weight
90 g
Displayable unit(s)
g scft/min
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Electrical connection for input 1, connection pattern
00991171
KC characters
KC EMC
Certificate issuing authority
UL E322346
Flow direction
Unidirectional
Flow measuring range end value
100 l/min
Accuracy of flow rate
± (2% o.m.v. + 1% FS)
Switching function
Window comparator Auto difference monitoring
Flow characteristic curve, start value
0 l/min
Overload protection
Available
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, service data contents IN
32 bit volume/mass measurement
Type of mounting
With accessories
Housing material
PA-reinforced
Pressure drop
15 mbar
Certification
RCM compliance mark c UL us - Listed (OL)
Measuring principle
Thermal
Operating medium
Argon Nitrogen
Repetition accuracy margin in ± %FS
0.8 %FS
Switching element function
N/C contact/N/O contact switchable
Max. load resistance of current output
500 Ohm
IO-Link®, protocol version
Device V 1.1
IO-Link®, port class
A
IO-Link®, data memory required
< 500 byte
Pneumatic connection
Internal thread G1/4
Degree of protection
IP40
Switching output
2 x PNP or 2 x NPN switchable
Min. load resistance of voltage output
20 kOhm
Protocol
IO-Link®
IO-Link®, SIO mode support
Yes
IO-Link®, minimum cycle time
4 ms
Mounting position
Any
Materials in contact with the media
Wrought aluminum alloy, anodized High-alloy stainless steel
Setting options
IO-Link® Via display and pushbuttons
